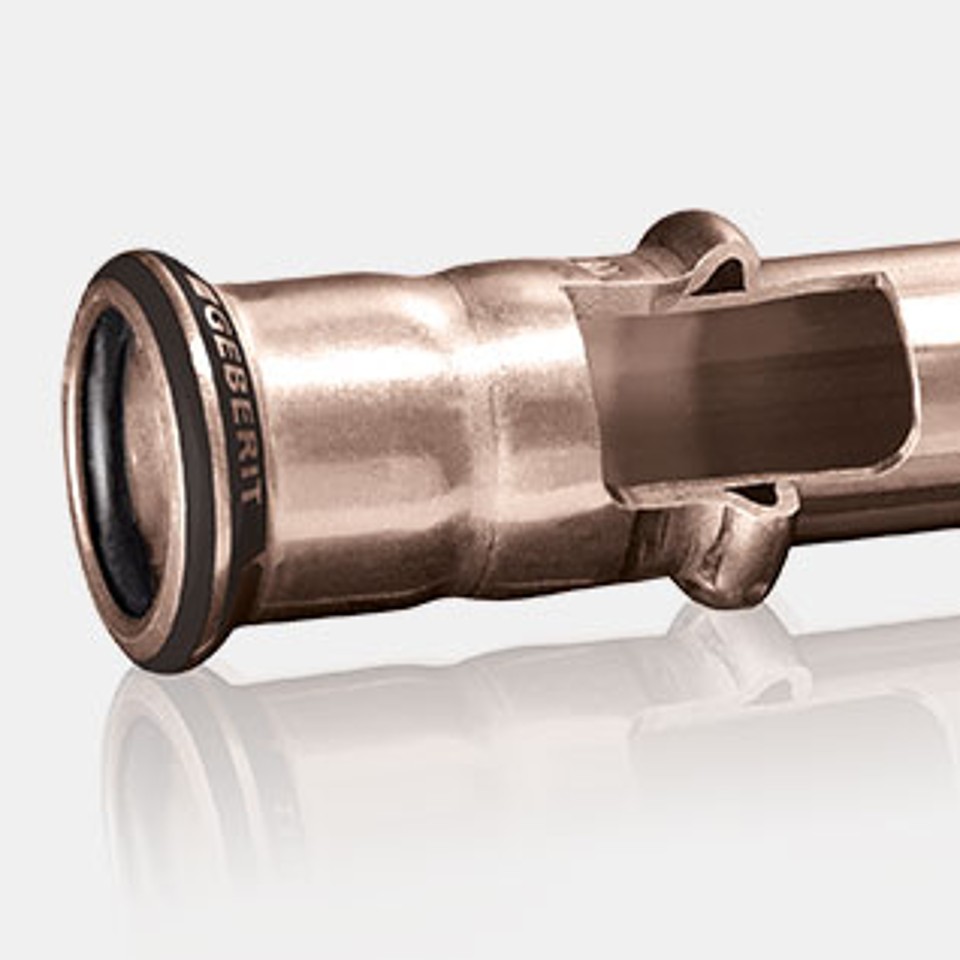

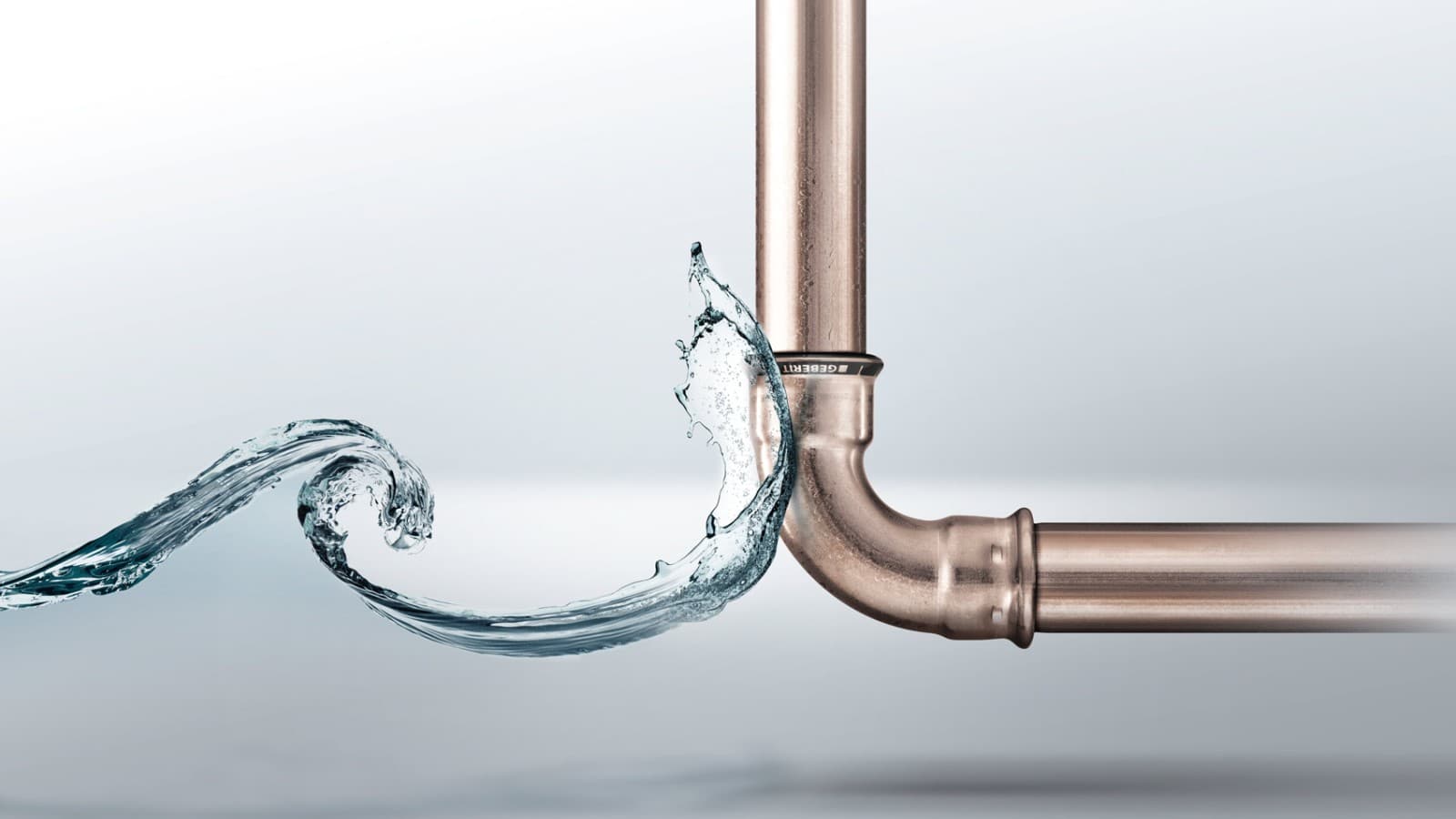

Geberit Mapress CuNiFe for applications with seawater content
The seawater specialist
Shipbuilding and offshore applications are subject to extreme conditions. Piping systems in these areas not only have to function reliably but also ensure safety and resistance over many years.
The copper-nickel-iron alloy of Geberit Mapress CuNiFe has proven particularly effective in pipelines carrying seawater thanks to its excellent corrosion resistance.
Our comprehensive range of press-fitted piping systems includes system pipes and fittings with various seal rings.
Main applications and areas of use
Direct contact with seawater in shipbuilding and offshore applications, such as oil and gas rigs, places the highest requirements on corrosion resistance. This is exactly where Geberit Mapress excels thanks to its versatility.
Bilge
Geberit Mapress CuNiFe is suitable for pumping out bilge-water and routing it to separators to be treated.

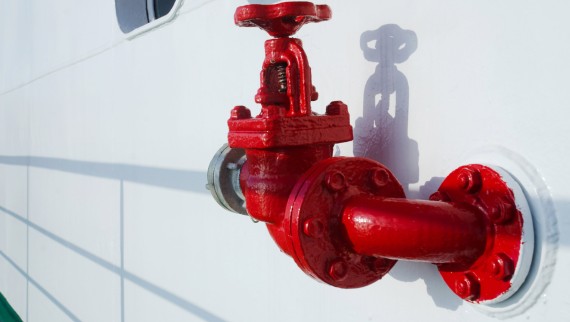

Extinguishing water pipes
Geberit Mapress CuNiFe is perfect for both “wet” and “dry” sprinkler and extinguishing water pipes in maritime applications.
Seawater pipes
Corrosion-resistant CuNiFe pipes and fittings are suitable for various applications, including cooling, ballast water and desalination facilities.
Sanitary pipelines
The seawater used to supply toilets and fill swimming pools on cruise ships can be routed using Geberit Mapress CuNiFe.
Piping systems for shipbuilding
In addition to Geberit Mapress CuNiFe, the Geberit portfolio includes other piping systems and solutions for maritime use.
We also have a wide range of supply and drainage solutions for applications in other industries and sectors.
Geberit Mapress CuNiFe overview
Facts & figures
Assortment overview
- 11 nominal widths from d12 to d108
- Material: CuNi10Fe1.6Mn (2.1972.11)
- Around 500 fittings
- CuNiFe 2.1973 system pipes
Dimensions
Available pipe dimensions
| Nominal width (DN) | Dimension d x s (mm) |
|---|---|
| 12 | 15.0 x 1.0 |
| 20 | 22.0 x 1.0 |
| 20 | 22.0 x 1.5 |
| 25 | 28.0 x 1.5 |
| 32 | 35.0 x 1.5 |
| 40 | 42.0 x 1.5 |
| 50 | 54.0 x 1.5 |
| 65 | 76.1 x 2.0 |
| 80 | 88.9 x 2.0 |
| 100 | 108.0 x 2.0 |
Fittings
Available fittings

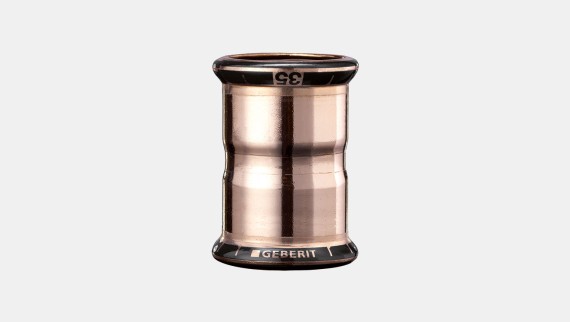

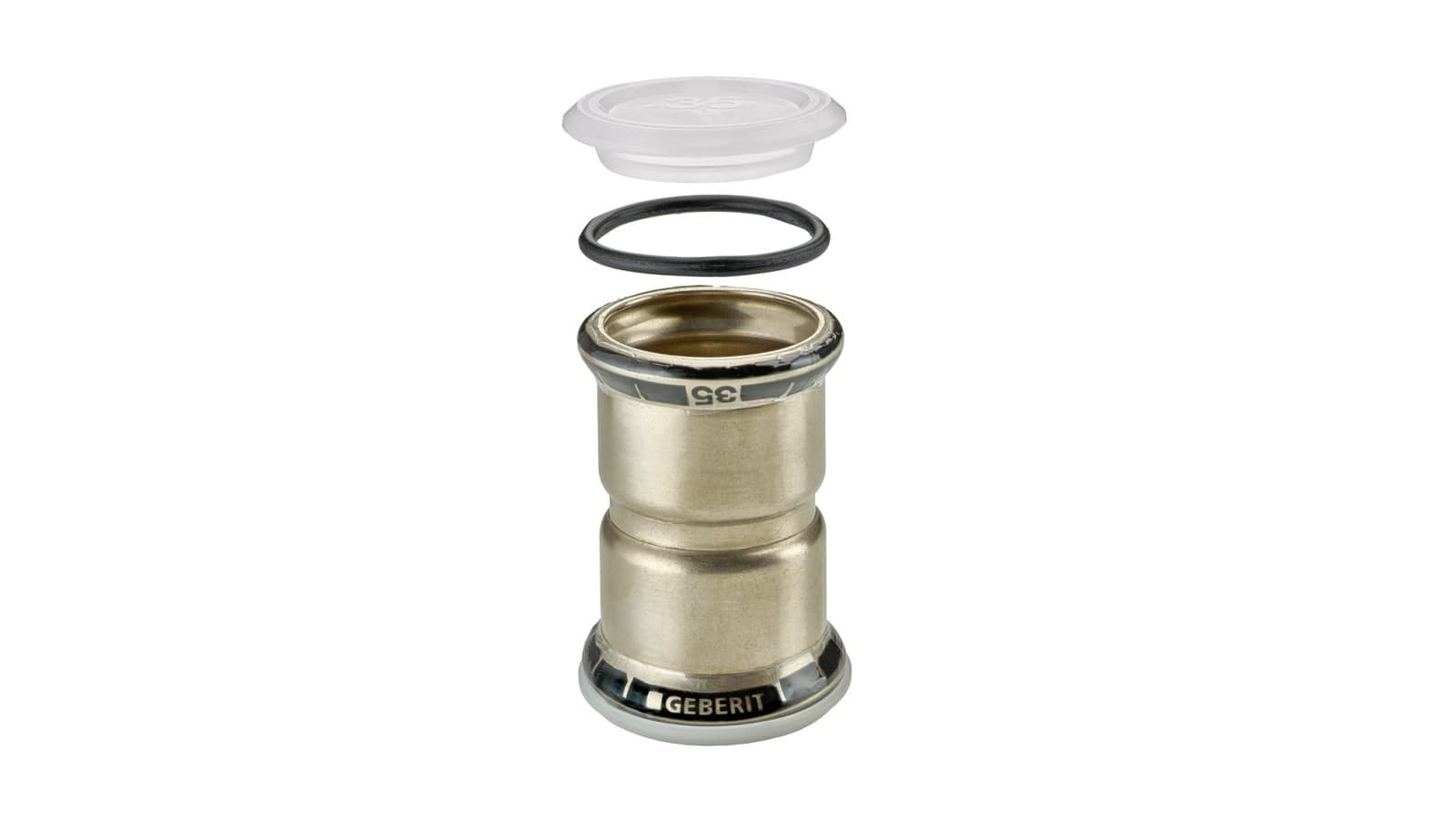

Geberit Mapress CuNiFe fittings
- Geberit Mapress CuNiFe fittings and pipes are made of a copper-nickel-iron alloy

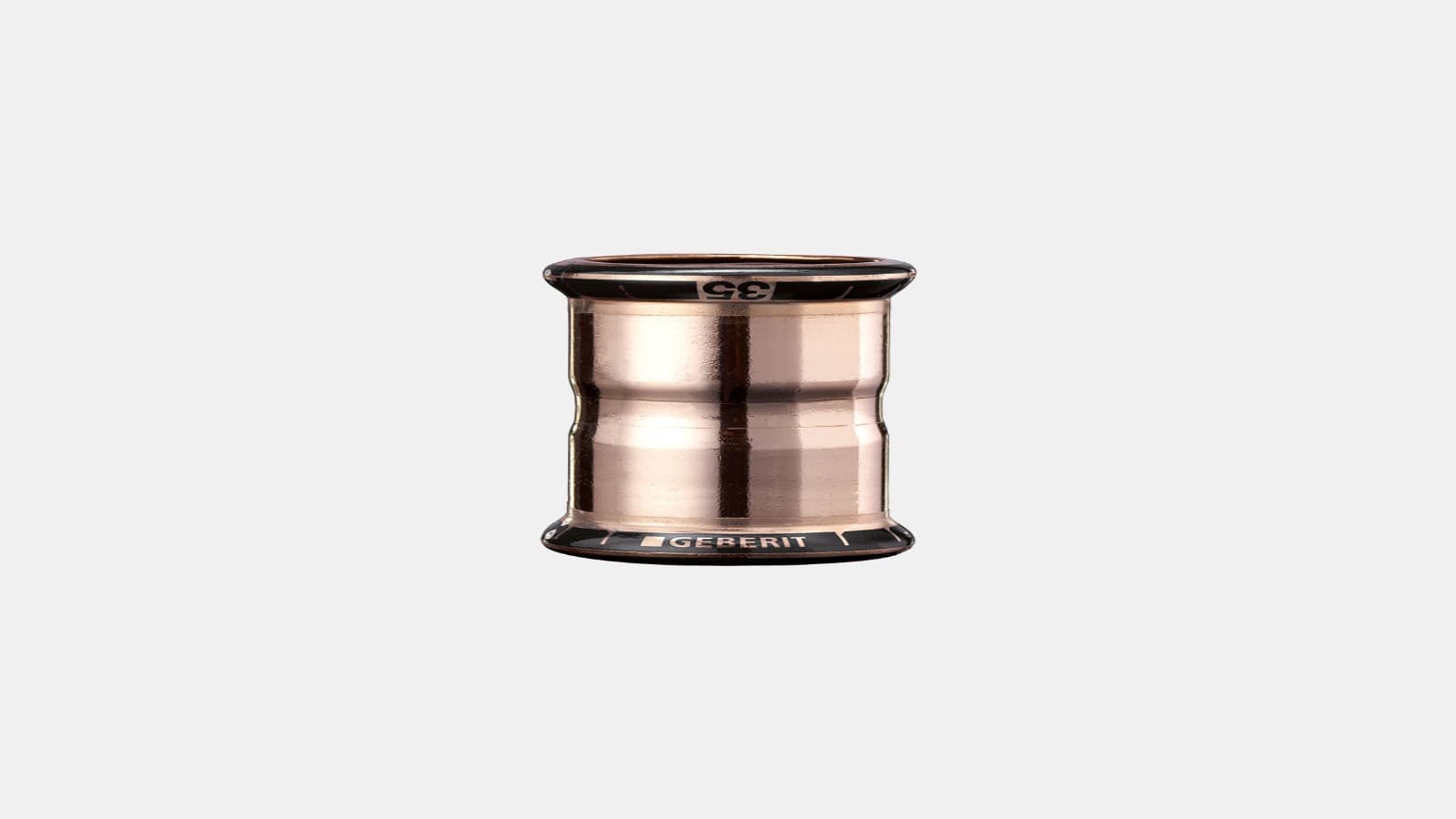

- Black pressing indicator indicates CuNiFe material
- Dimension printed on the pressing indicator
- Non-pressed connections are leaky and immediately identifiable during a pressure test
- Protective plug prevents fittings from getting dirty
- Particularly suitable for applications in shipbuilding or in contact with seawater

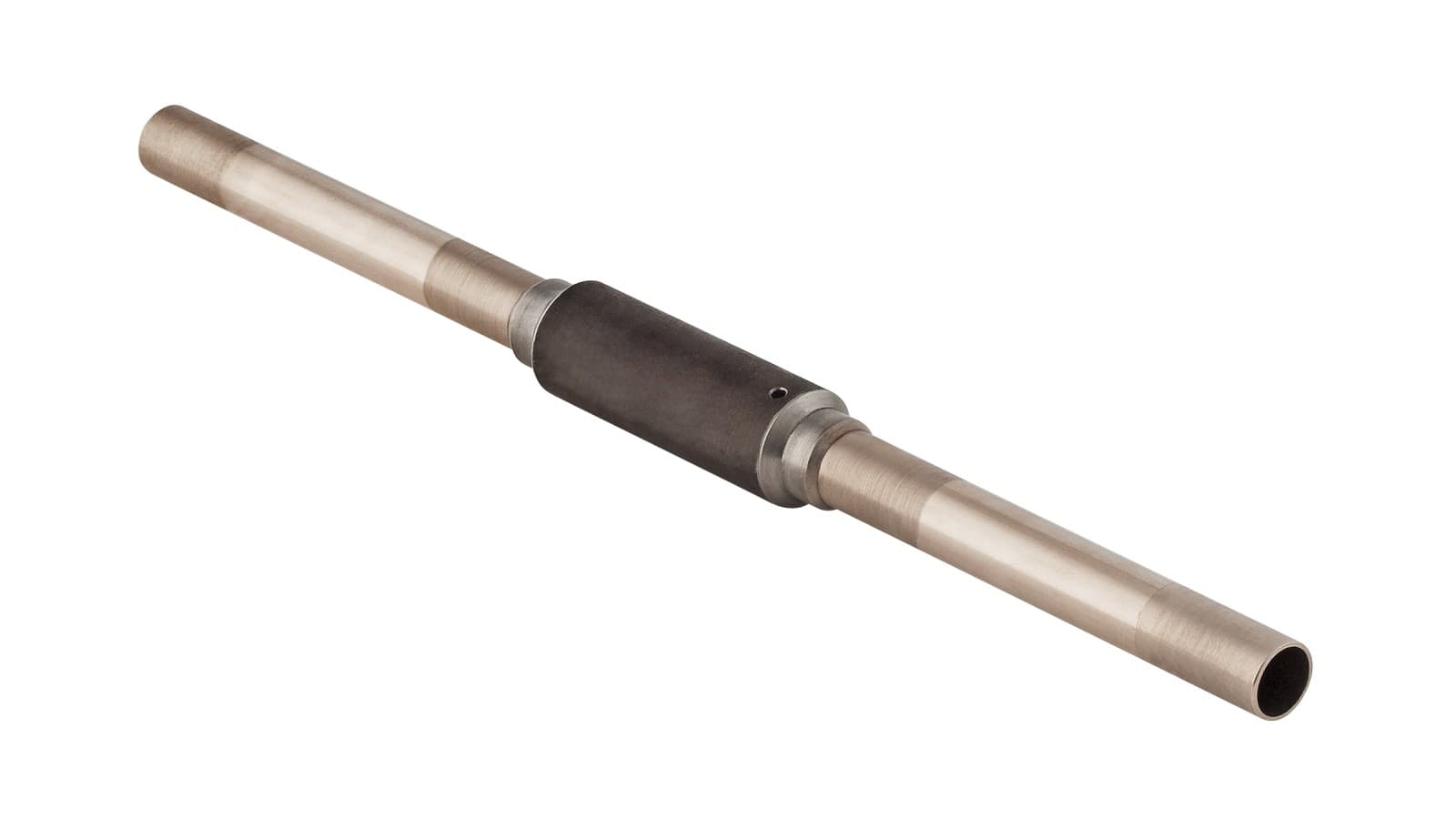

Geberit Mapress CuNiFe bulkhead and deck passing
In shipbuilding, a bulkhead and deck passing is especially important because it ensures that cables, pipes and transmission lines can be routed through bulkheads (partition walls) and decks (tween-deck) without effecting the ship’s structural integrity or fire protection.
- Protective tube for welding
- Protective tube made of EN 1.0039 steel, coated
- Available in dimensions d15 to d108
Seals

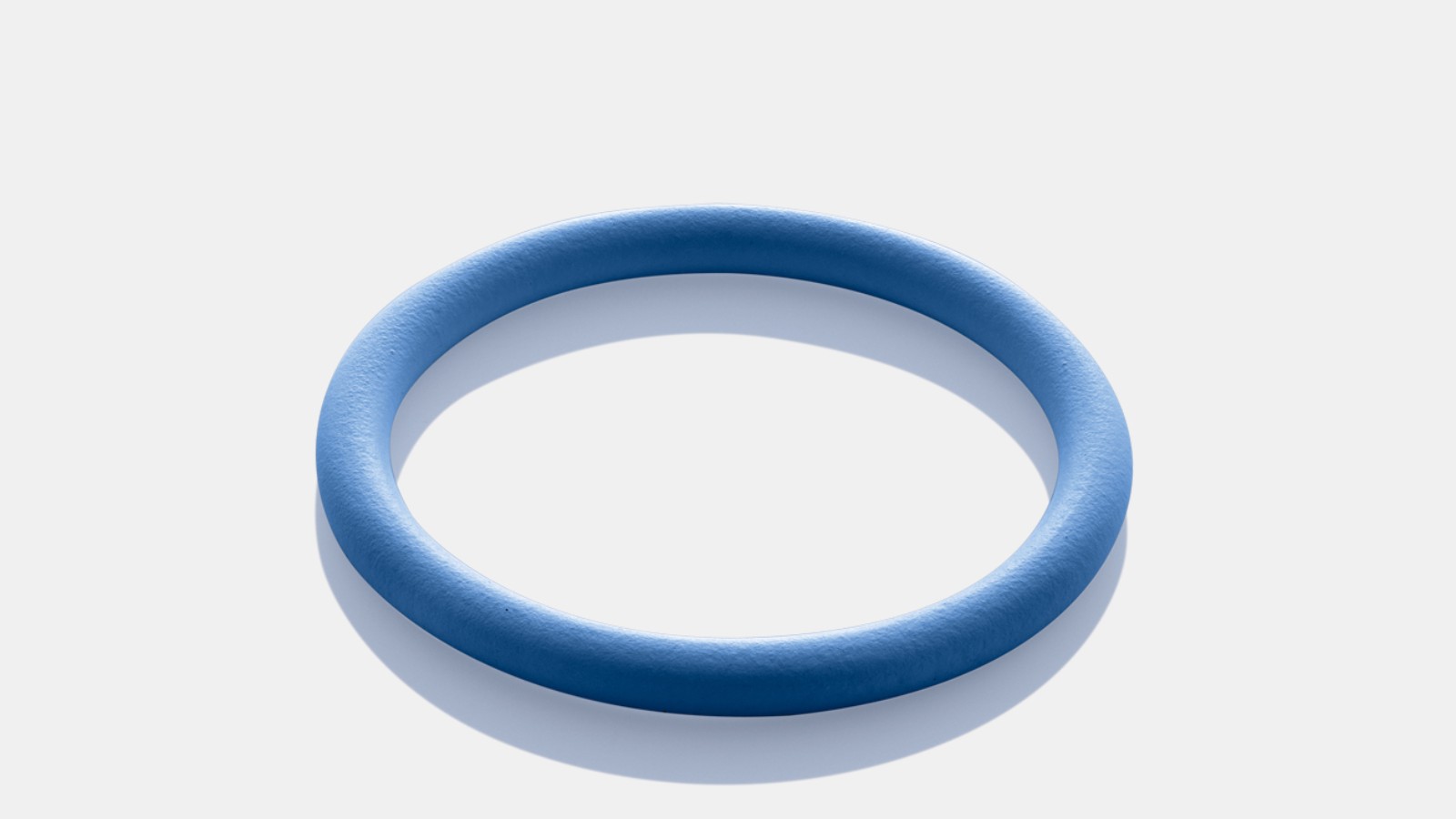

Available seals
When using seal rings, please follow the instructions in the application overview.

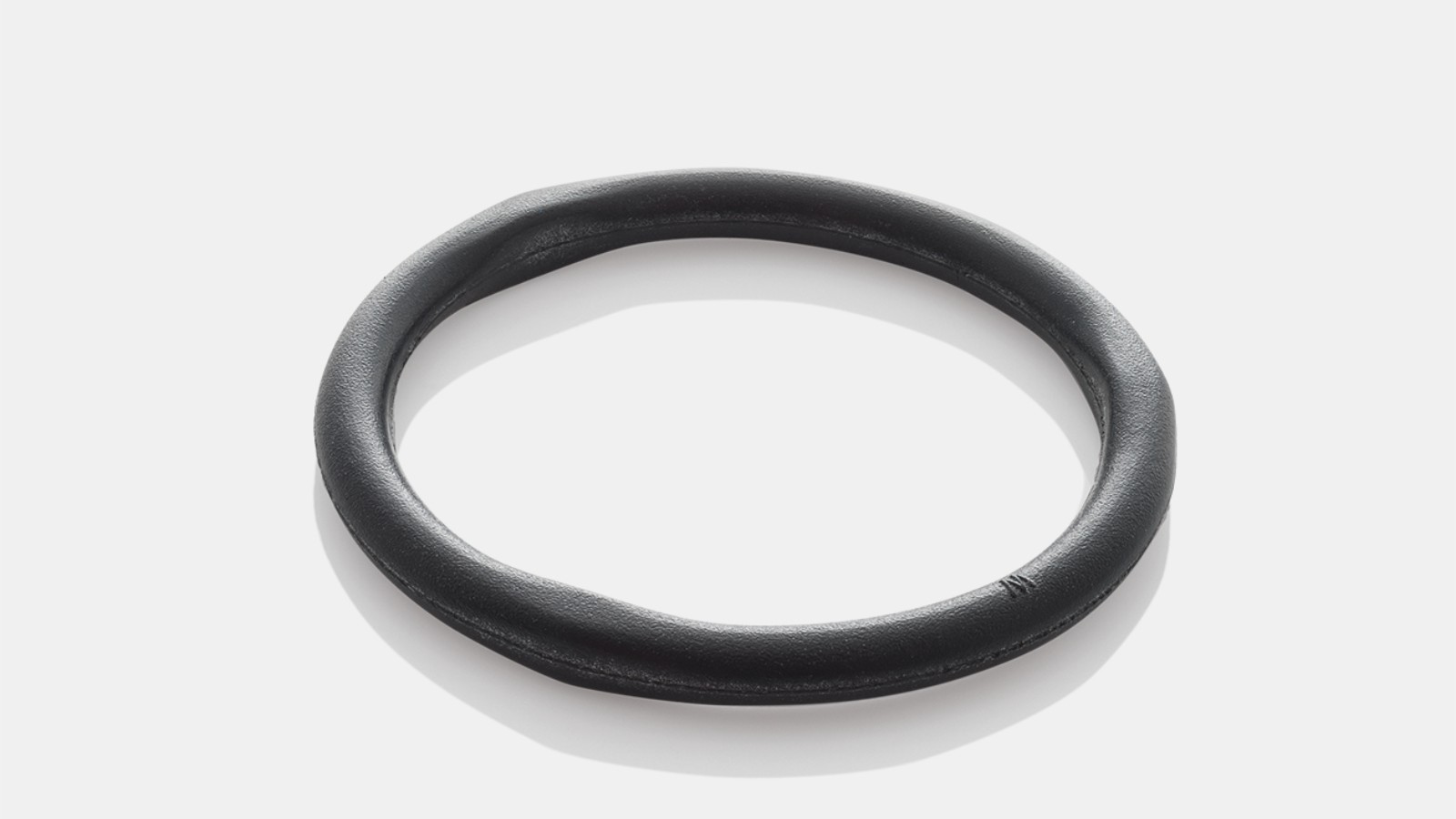

Applications with Geberit Mapress CuNiFe and black CIIR seal ring
Can be used for the following liquid media:
- Cooling water without antifreeze agent (0 up to 100 °C)
- Cooling water with antifreeze agent (-30 up to 120 °C)
- For grey and black water with a pH value > 6.0
- Seawater (0 up to 100 °C)
- Extinguishing water (wet)
- Sprinkler (wet)
- Chemicals and technical liquids
Can be used for the following gaseous media:
- Compressed air (oil purity class 0–3)
- Negative pressure
System pipes
System pipe assortment

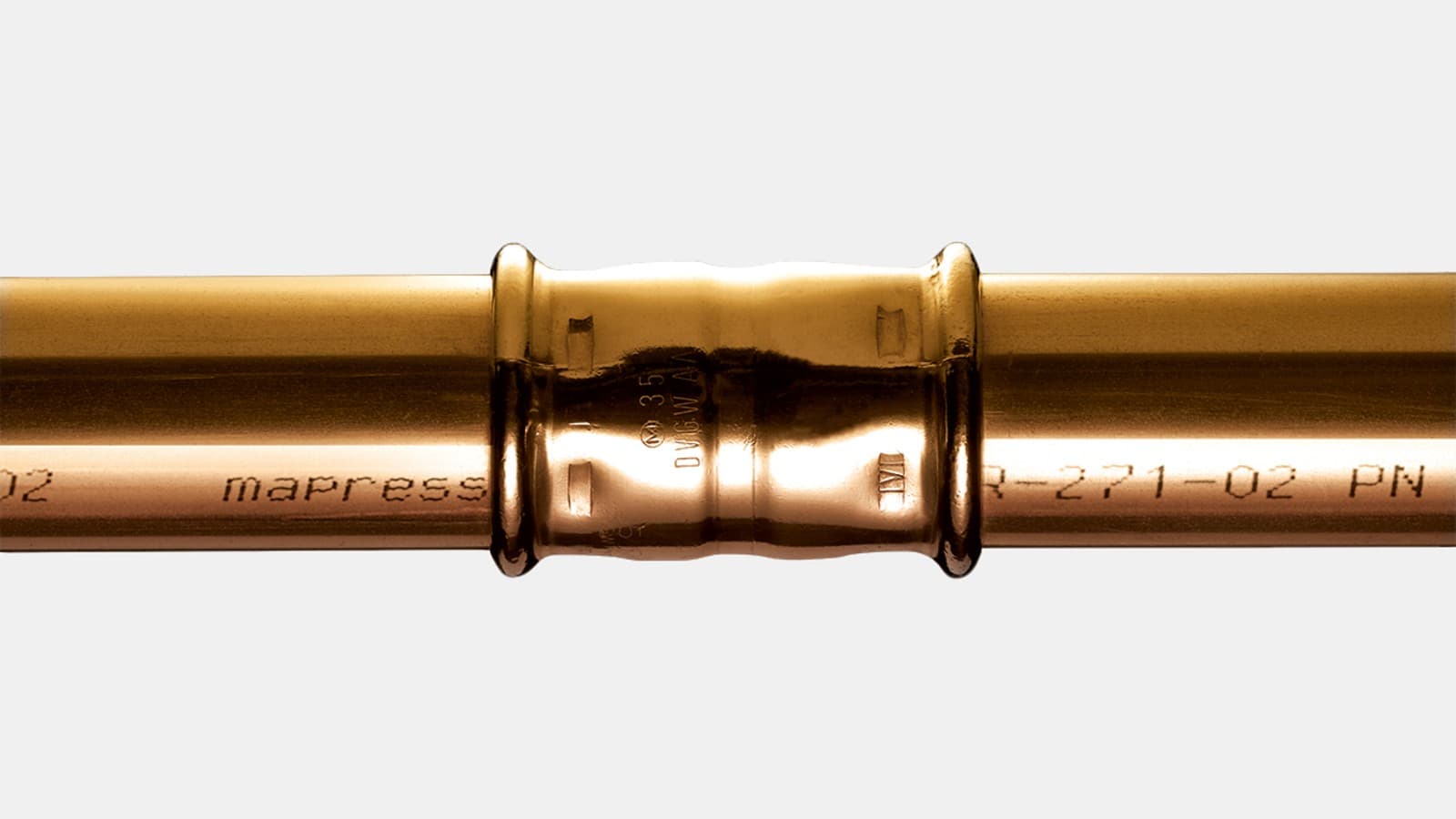

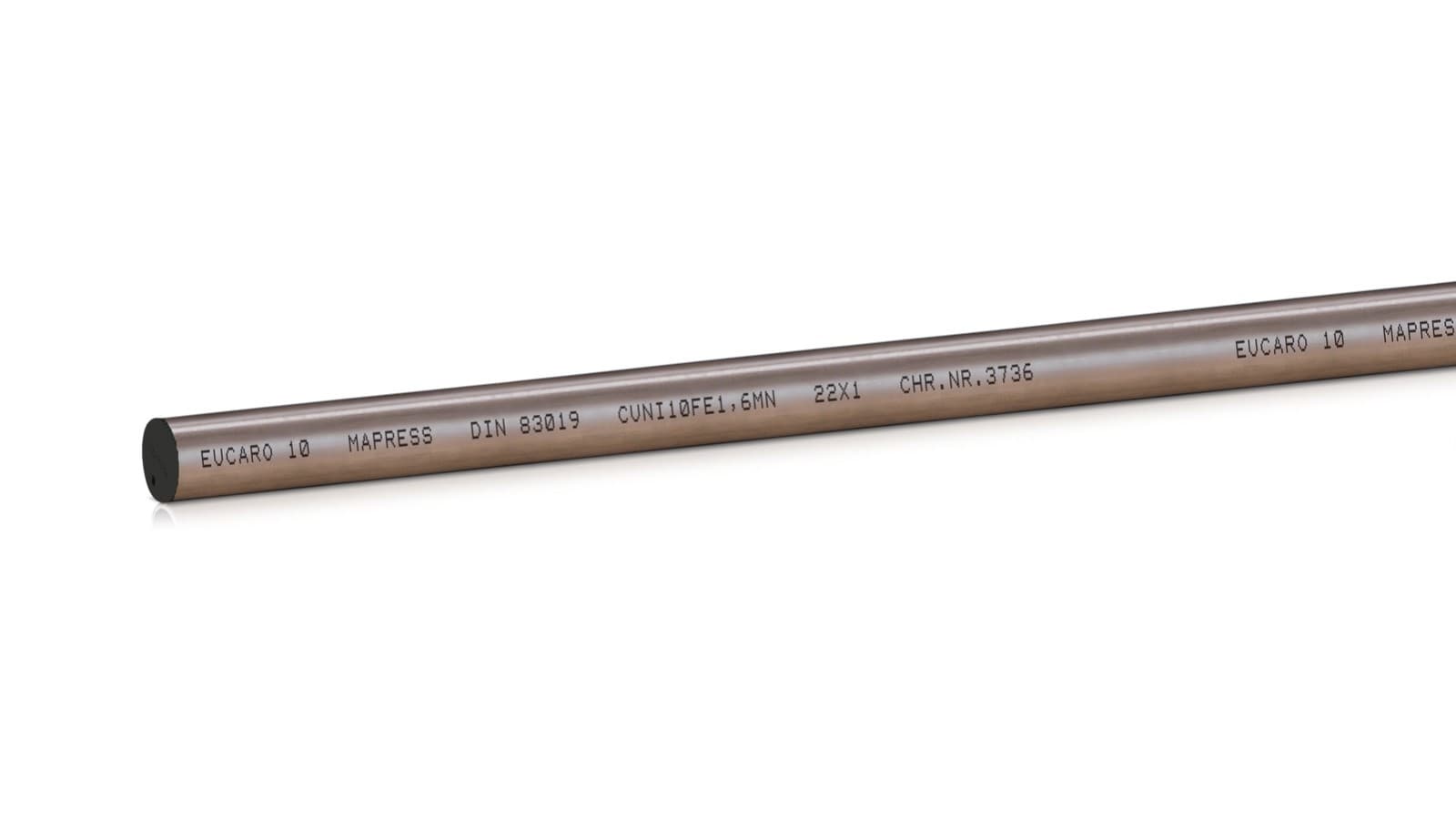

Geberit Mapress CuNiFe system pipes
- Excellent corrosion resistance, especially against salt water
- Black protective plugs on the ends of the pipes stop particles and dirt from getting in
- The pipes are thermally and mechanically treated to create a homogenous, high-quality material structure
Environmental product declaration
Environmental product declaration (EPD)
Environmental product declarations (EPDs) create transparency and allow products to be compared in terms of their environmental impact.
EPDs are available for Geberit Mapress CuNiFe pipes and all key fittings:
- Geberit Mapress CuNiFe system pipes
- Geberit Mapress CuNiFe fittings
Installation
A quick guide to installation

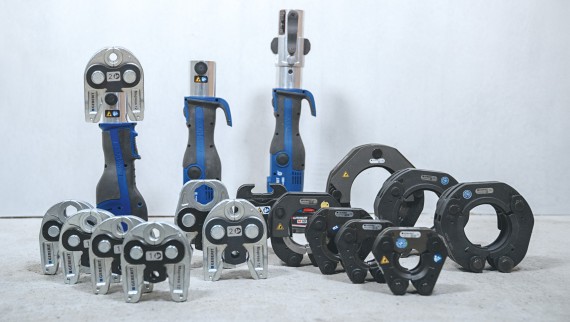

Geberit offers a comprehensive range of pressing tools, pressing jaws and collars to install Geberit Mapress pipes and fittings.
Note: The installation process for Geberit Mapress d12 to d88.9 is different to that for Geberit Mapress d108.
Reference projects
Geberit in the Turkish sea breeze
The shipbuilding business is booming in Türkiye. Geberit Mapress CuNiFe piping systems are providing good service here.
Do you have any questions? We are happy to help you.
Our specialists advise planners, plumbers and other professionals on their projects. They will be happy to advise you on how to best master your current challenges with our products.
Frequently asked questions about Geberit Mapress CuNiFe
Why is CuNiFe used in shipbuilding in particular?
CuNiFe is suitable for shipbuilding because the copper-nickel-iron alloy has low susceptibility to corrosion, making it resistant to seawater.
What does CuNiFe stand for?
CuNiFe stands for copper-nickel-iron, an alloy with excellent corrosion resistance – especially against seawater.
Can Geberit Mapress CuNiFe be combined with other materials?
We do not advise using Geberit Mapress CuNiFe with other materials.
How easy is CuNiFe to install and maintain in restricted offshore conditions that have higher requirements in terms of safety?
Geberit Mapress CuNiFe is simple to install because it is press-fitted. Pressed joints mean no welding is required. This eliminates the need for complex fire safety measures.
You can also install CuNiFe in tight spaces using Geberit’s handy pressing tools.
What approvals for maritime applications does Geberit Mapress CuNiFe have?
Geberit Mapress CuNiFe meets international standards and is certified by leading classification societies such as ABS, Bureau Veritas, China Classification Society, ClassNK, DNV, Lloyd’s Register and RINA. This gives you peace of mind the world over.
