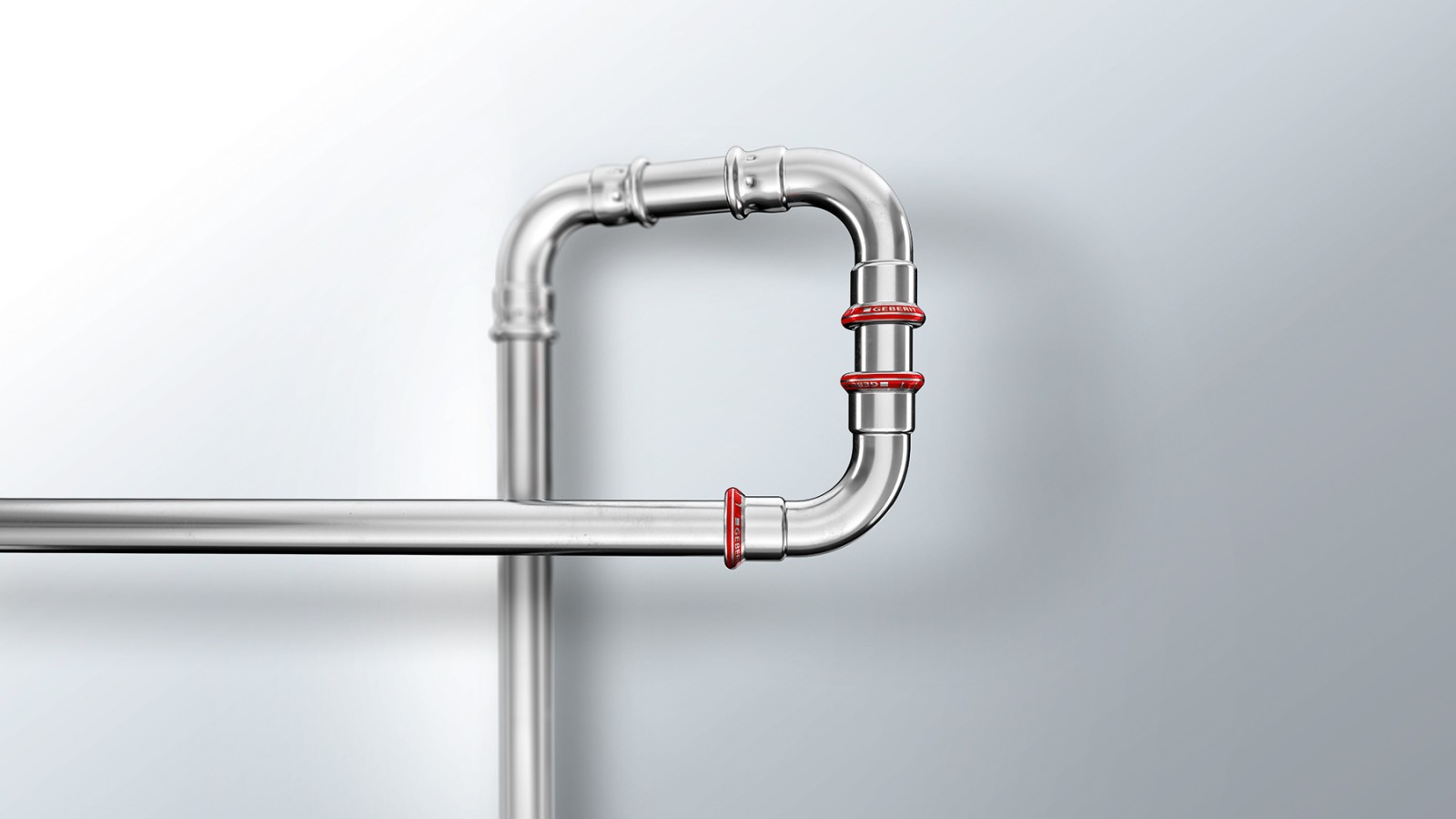

Geberit Mapress Carbon Steel for closed circuits
The cost-effective solution

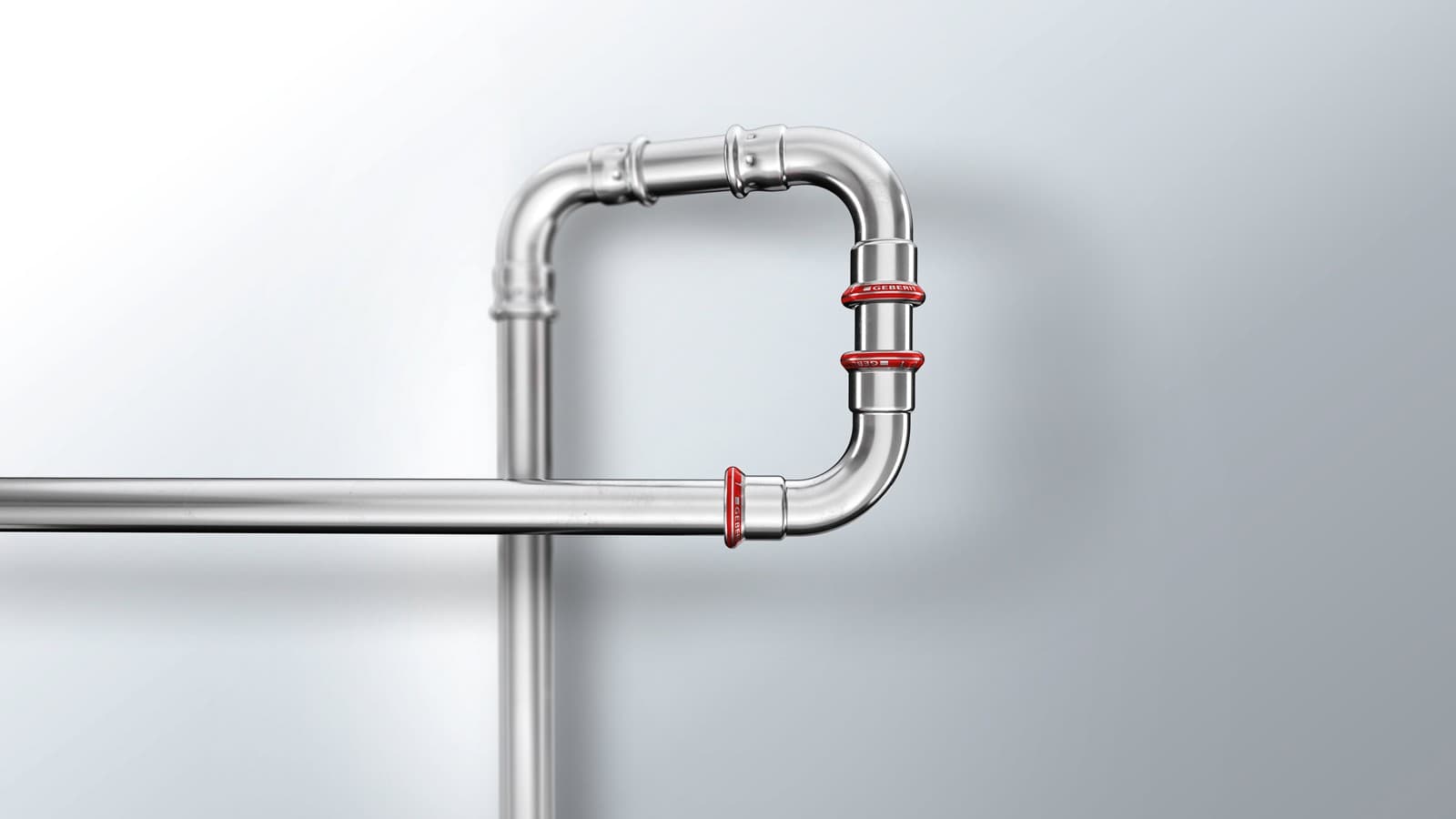

Geberit Mapress Carbon Steel is the cost-effective solution for reliable pipe installations in closed circuits.
Our tried-and-tested pressing system enables quick and secure installation without welding.
A comprehensive selection of system pipes, fittings and seals provides versatility – from private residences to industrial plants. System pipes with zinc plating both inside and outside are also available for special applications.
Main applications and areas of use
Geberit Mapress Carbon Steel is suitable for a wide variety of applications and is attractively priced compared to other materials.
Heating and cooling in technical building systems
Not only is Geberit Mapress Carbon Steel suitable for cooling pipes, but it can also be used in closed heating systems, for example for underfloor heating or radiators.
Sprinkler and extinguishing water pipes
Geberit Mapress Carbon Steel is tested and approved for “wet” sprinkler and extinguishing water pipes.
Motor fuels and oils
Geberit Mapress Carbon Steel is suitable and approved for heating oil and diesel as well as motor, gearbox and lubricating oil.
Compressed air pipes
Geberit Mapress Carbon Steel can be used to distribute compressed air, depending on compressed air quality.
Benefits of Geberit Mapress Carbon Steel The perfect coating for every application
Geberit Mapress Carbon Steel pipes are available with PP-jacketing, outside zinc plating or inside and outside zinc plating.
Geberit Mapress Carbon Steel, outside zinc-plated: Zinc plating provides proven protection against external corrosion and makes the system particularly cost-effective. A robust solution for closed heating, cooling and industrial systems.
Geberit Mapress Carbon Steel, inside and outside zinc-plated: For maximum safety: Zinc plating on both sides ensures reliable protection against internal and external corrosion. Ideal for demanding applications such as sprinkler, extinguishing water and compressed air systems.
Geberit Mapress Carbon Steel with PP jacketing: The cream white PP jacketing provides reliable protection against external corrosion and ensures a clean and visually appealing surface-mounted installation. Ideal for visible pipe layouts, where function and look are equally important.
Geberit Mapress Carbon Steel overview
Facts & figures
Assortment overview
- 11 nominal widths from d12 to d108
- Around 500 fittings
- System pipes in carbon steel with plastic jacketing; outside zinc-plated and inside and outside zinc-plated
- Extensive range of adapters and transitions to other systems
Dimensions
Available pipe dimensions
| Nominal width (DN) | Dimension d x s (mm) | Geberit Mapress Carbon Steel with PP jacketing | Geberit Mapress Carbon Steel, outside zinc-plated | Geberit Mapress Carbon Steel, inside and outside zinc-plated |
|---|---|---|---|---|
| 10 | 12.0 x 1.2 | |||
| 12 | 15.0 x 1.2 | |||
| 15 | 18.0 x 1.2 | |||
| 20 | 22.0 x 1.5 | |||
| 25 | 28.0 x 1.5 | |||
| 32 | 35.0 x 1.5 | |||
| 40 | 42.0 x 1.5 | |||
| 50 | 54.0 x 1.5 | |||
| 65 | 76.1 x 2.0 | |||
| 66.7 | 66.7 x 1.5 | |||
| 80 | 88.9 x 2.0 | |||
| 100 | 108.0 x 2.0 |
Fittings
Available fittings

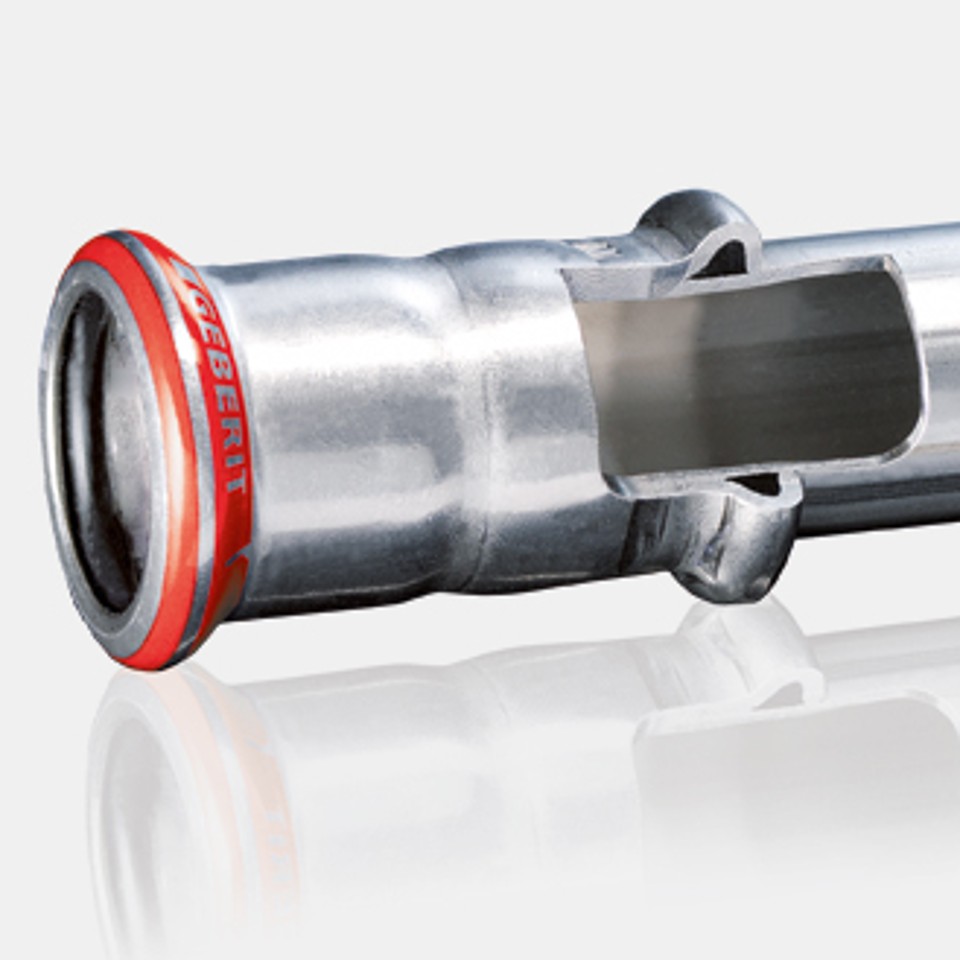

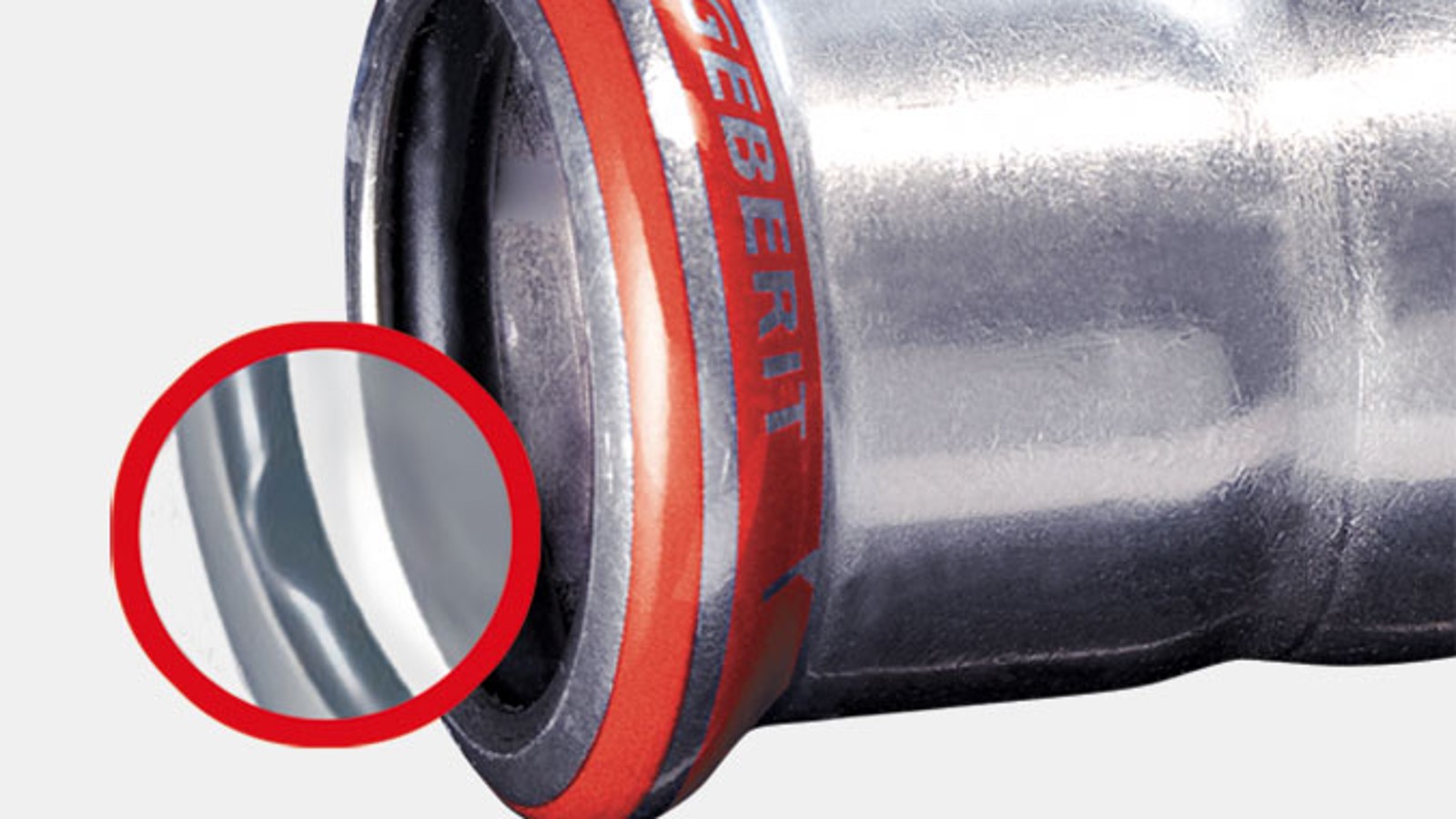

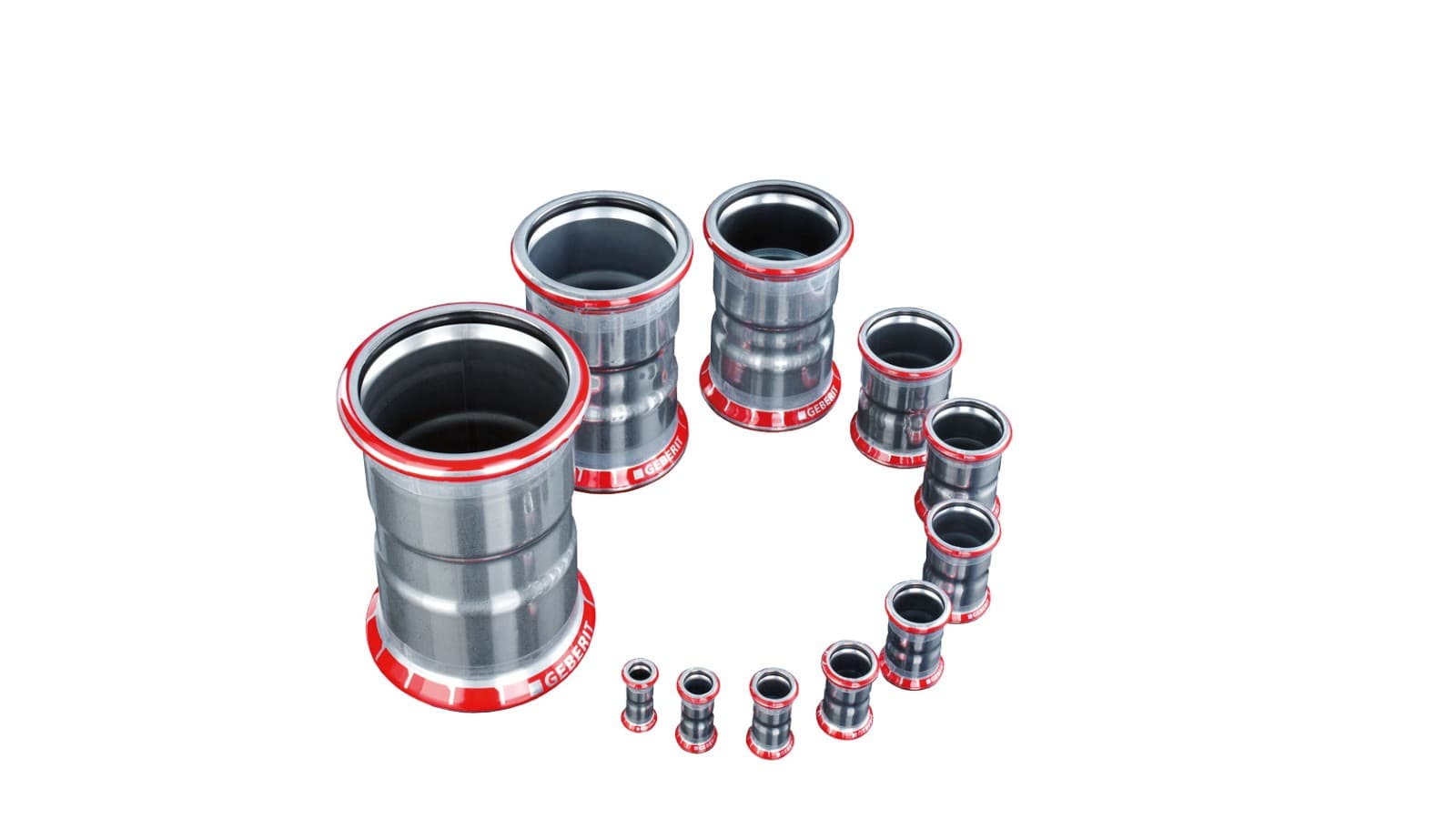

Geberit Mapress Carbon Steel pressfittings
- EN 1.0034 non-alloy steel, outside zinc-plated with additional chromised protective coating

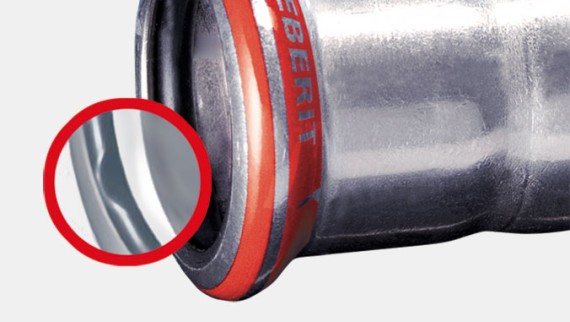

- Red pressing indicator indicates carbon steel
- Dimension printed on the pressing indicator
- Non-pressed connections are leaky and immediately identifiable during a pressure test
- Protective plug prevents fittings from getting dirty
- More than 400 different fittings available

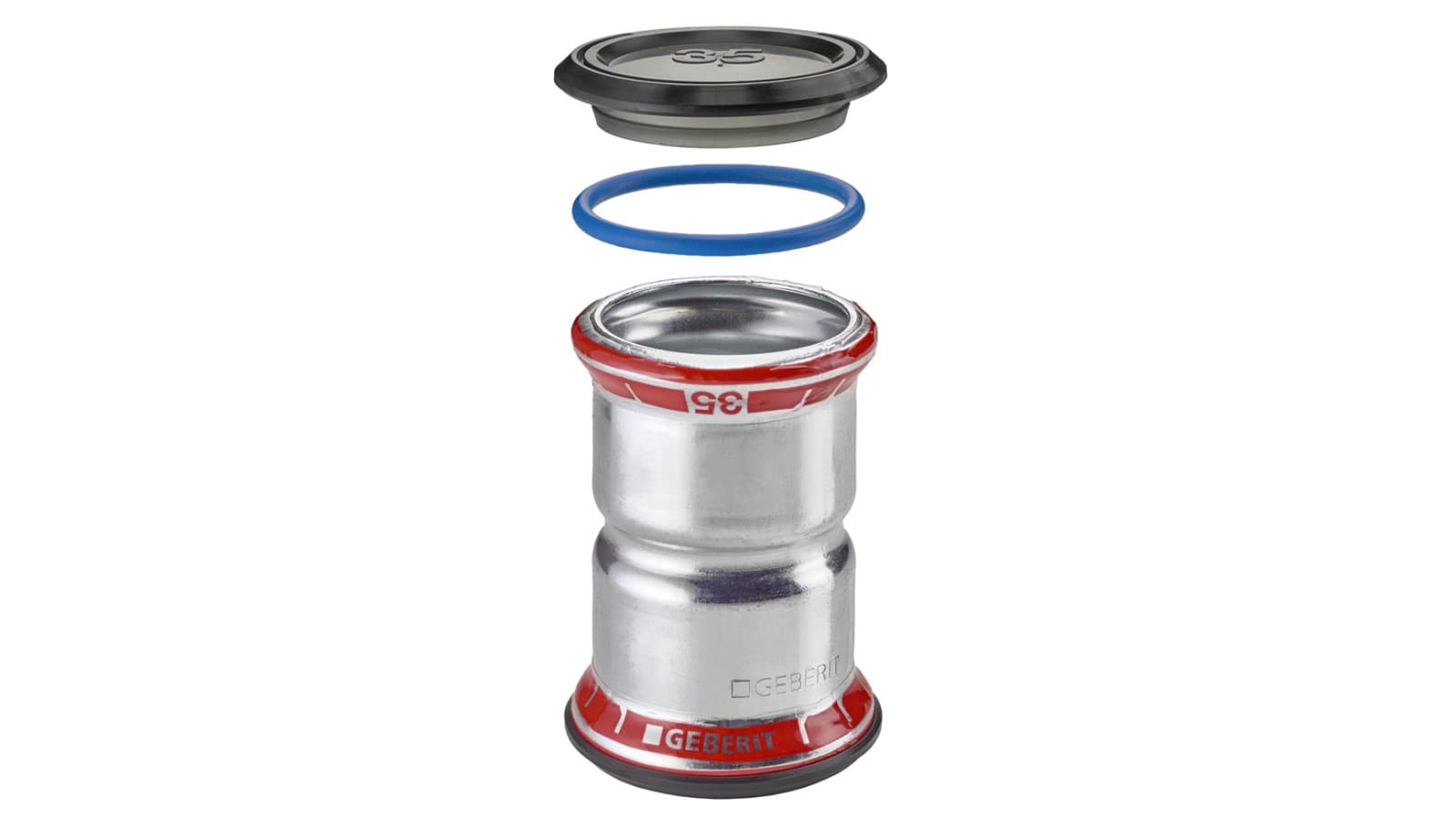

Geberit Mapress Carbon Steel, FKM, blue
- EN 1.0034 non-alloy steel, outside zinc-plated with additional chromised protective coating
- For use with oil-containing media and other special requirements
- Pressing indicator to test if the fittings are pressed correctly
- Red pressing indicator indicates carbon steel
- Blue FKM seal ring and black cap for use with oil-containing media and other requirements
- Available in dimensions from d12 to d108
Seals
Available seals
See the application overview for details about all the applications of Geberit carbon steel, including available seals. Please note the relevant instructions.

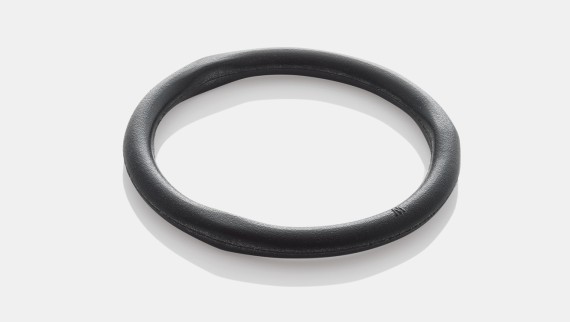

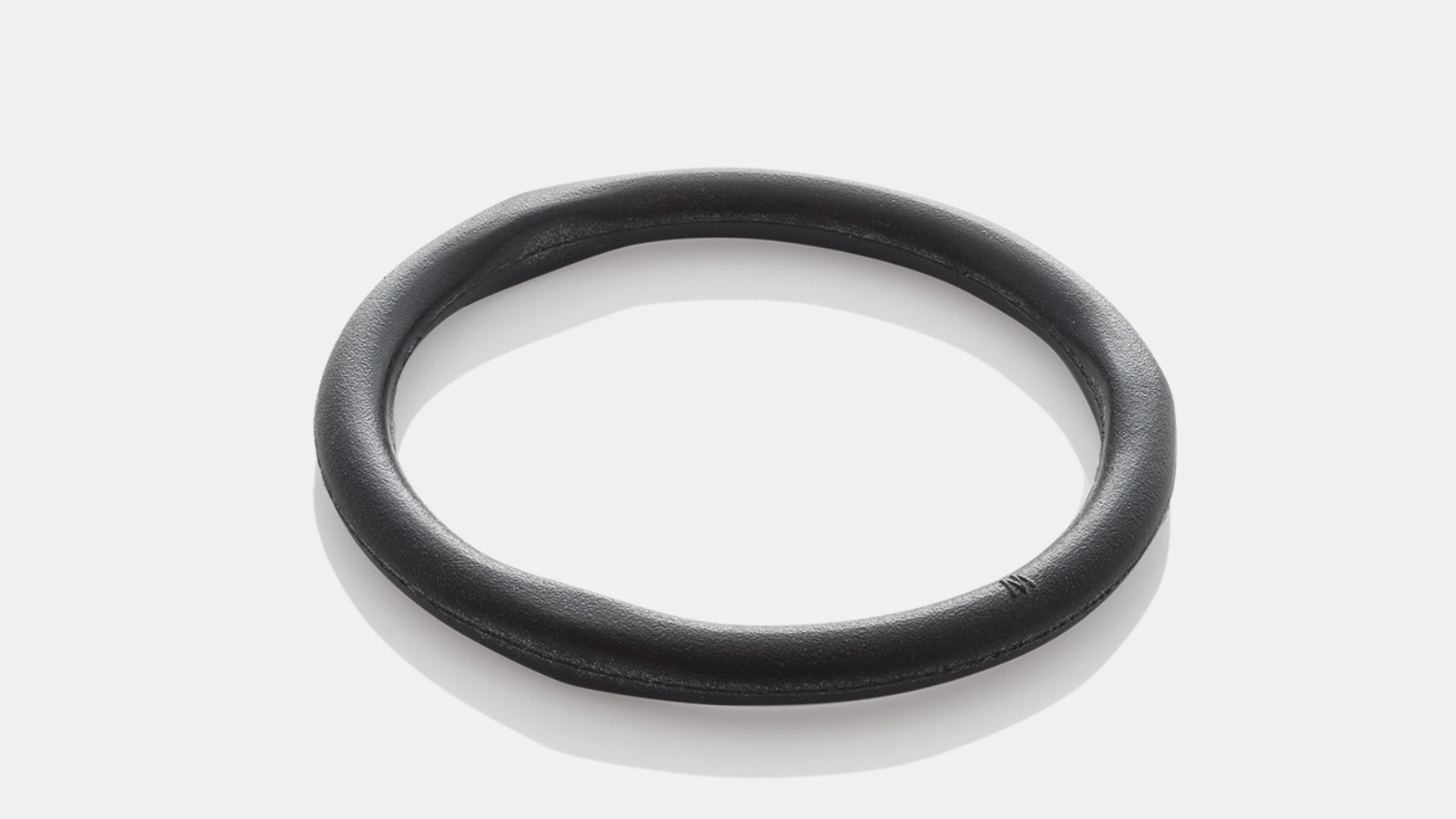

Seal ring CIIR, black
General applications of Geberit Mapress Carbon Steel with black CIIR seal ring include:
- Heating water
- Cooling water without antifreeze agent
- Cooling water with antifreeze agent
- District heating water ≤ 120 °C
- Extinguishing water (wet)
- Sprinkler (wet)
- Compressed air (oil purity class 0–3)
- Inert gases

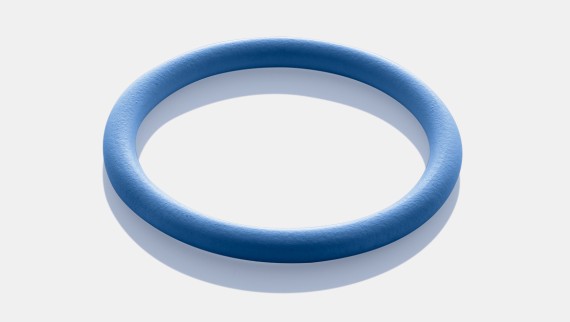

Seal ring FKM, blue
General applications of Geberit Mapress Carbon Steel with blue FKM seal ring include:
- District heating water ≤ 140 °C
- Thermal medium (solar)
- Mineral oils
- Motor fuels
- Compressed air (oil purity class 0–X)
System pipes
System pipe assortment

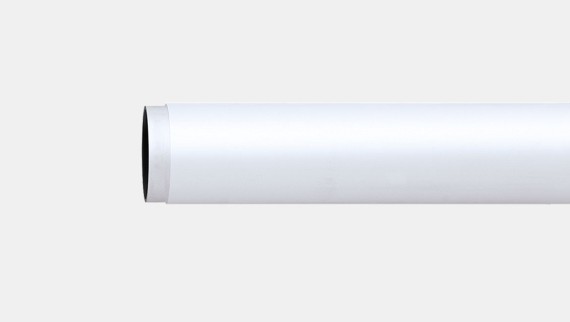

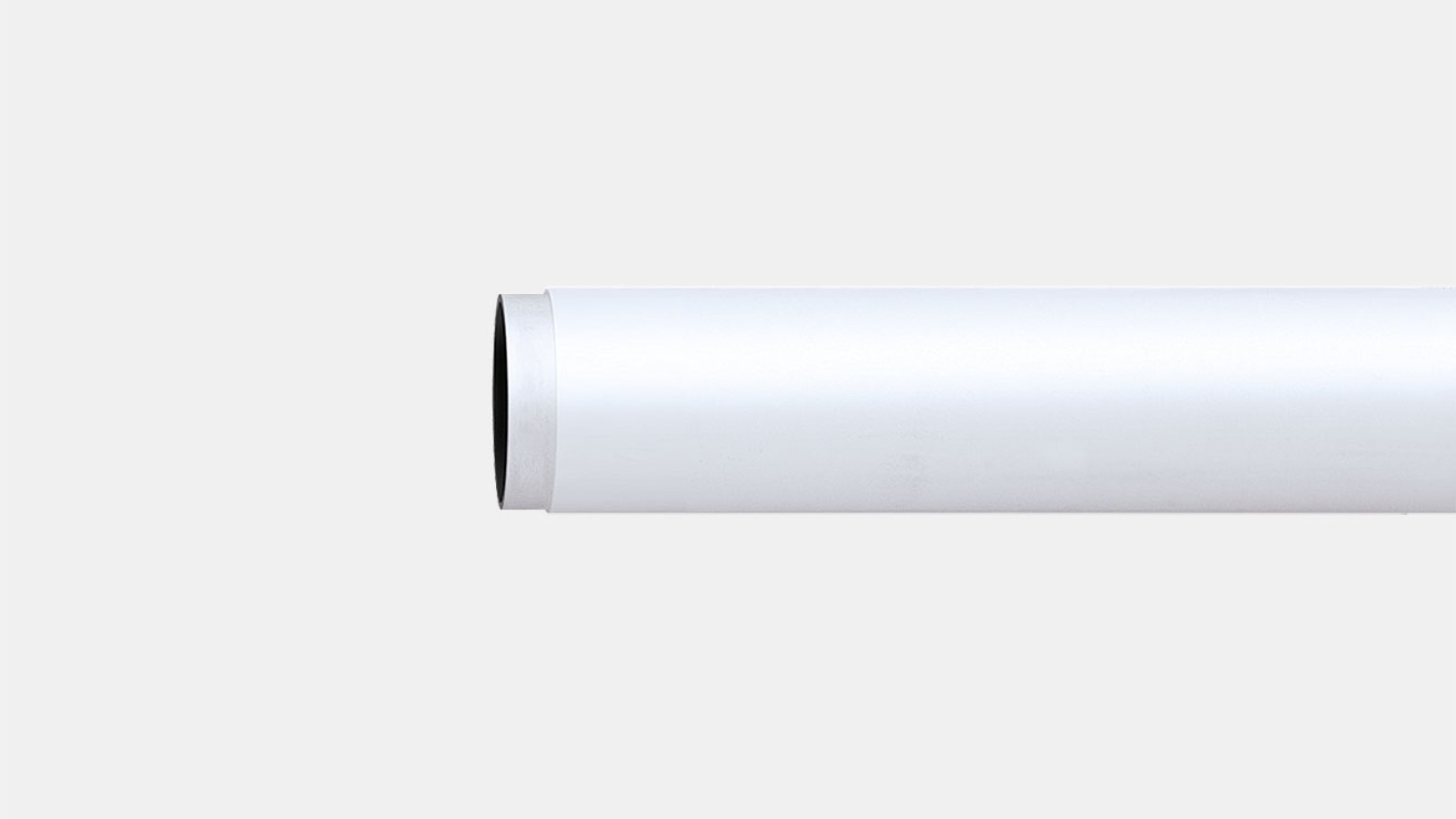

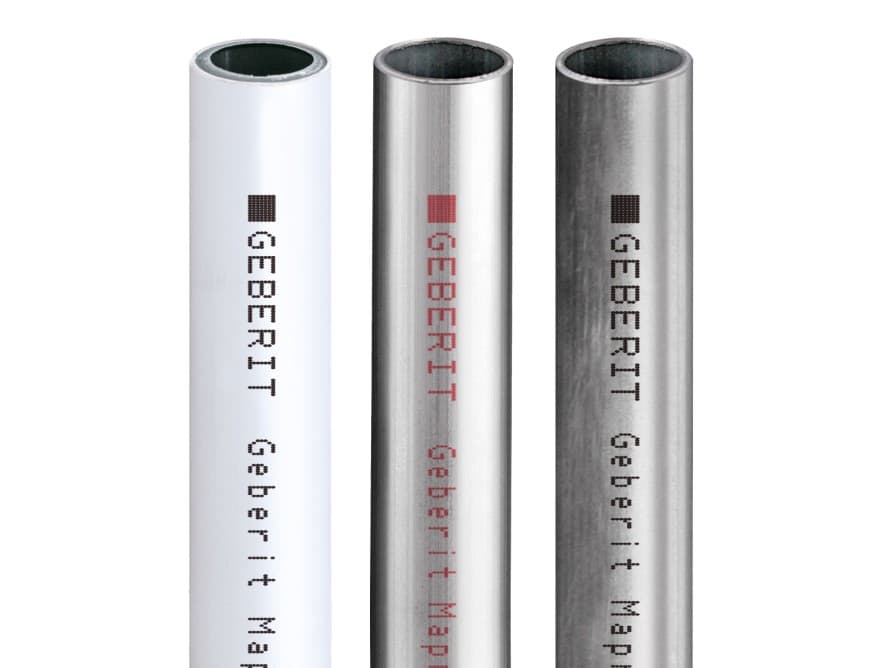

Geberit Mapress Carbon Steel system pipe with plastic jacketing made of PP
- Ideal for visually discreet surface mounting
- EN 1.0034 non-alloy steel
- Available dimensions from DN 10 to DN 50
- Plastic jacketing made of PP, cream white (RAL 9001)

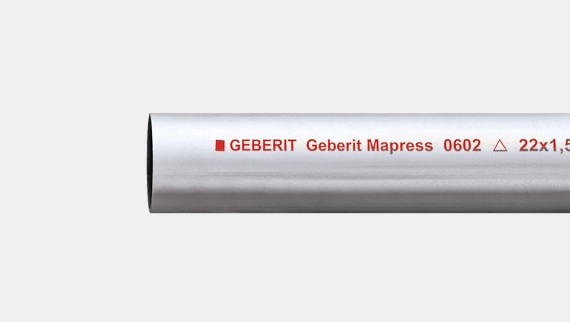

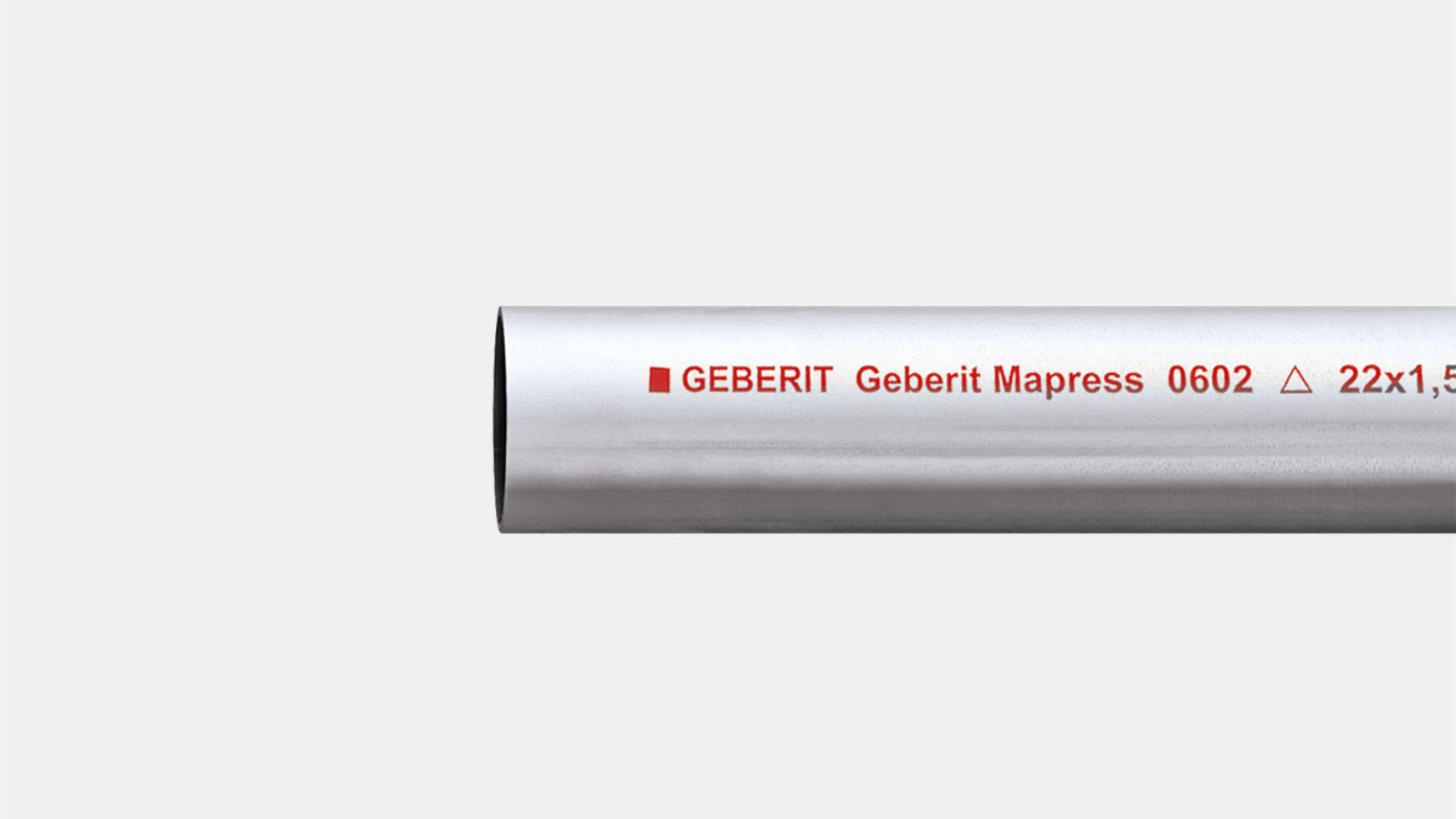

Geberit Mapress Carbon Steel system pipe, outside zinc-plated
- Ideal for economical installations
- EN 1.0034 non-alloy steel
- Available dimensions from DN 10 to DN 100
- Corrosion protection thanks to zinc plating
- Marked with red inscription

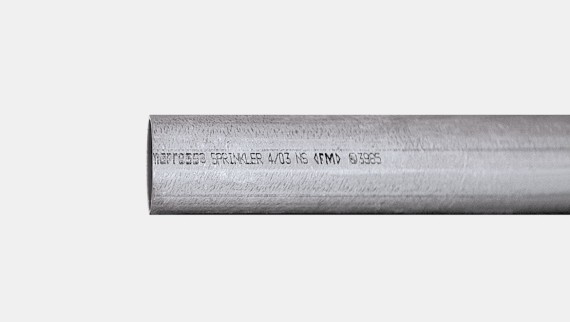

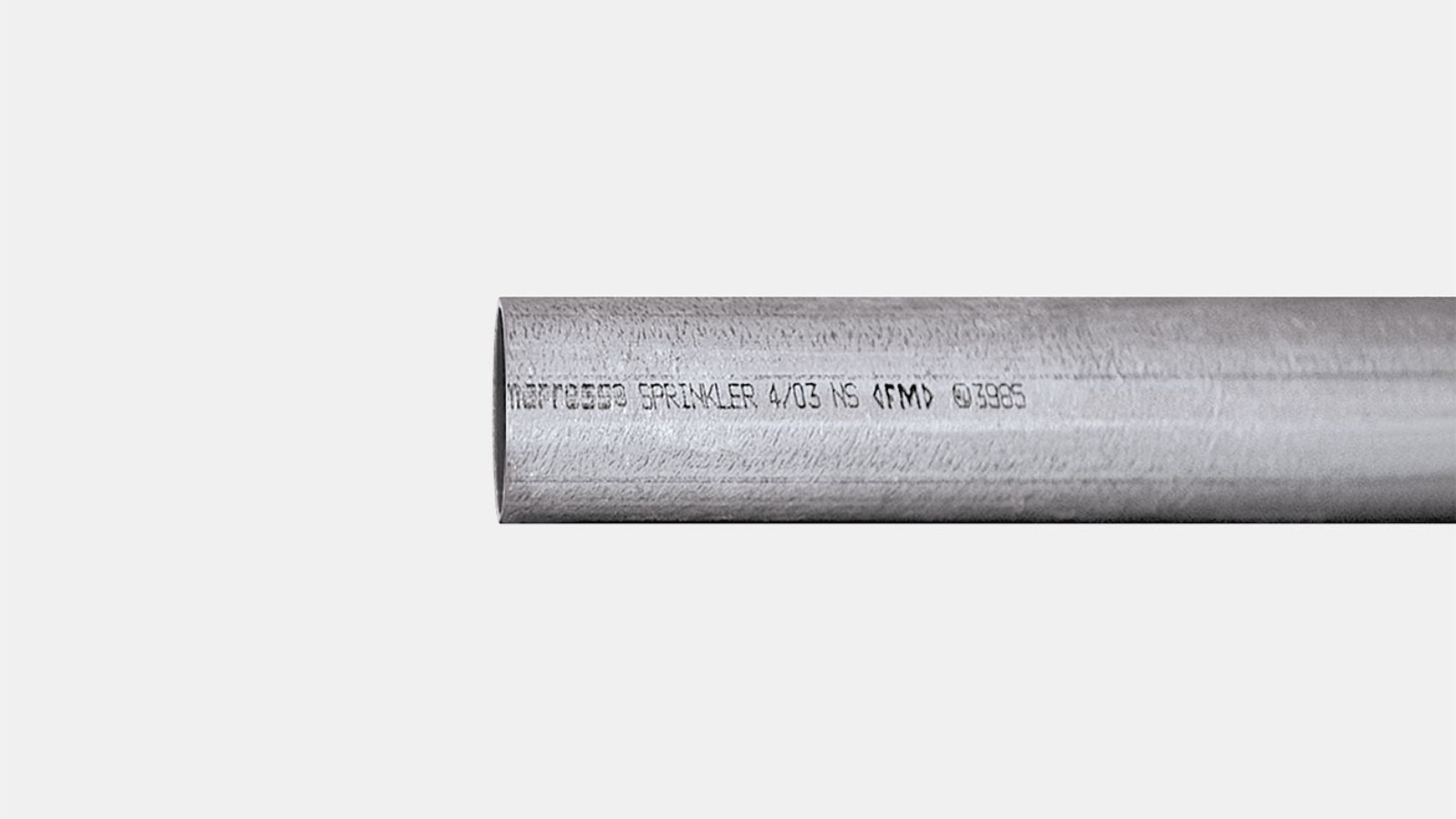

Geberit Mapress Carbon Steel system pipe inside and outside zinc-plated
- Ideal for sprinkler, compressed air and extinguishing water systems
- VdS certification for wet sprinkler systems
- “FM Approved” quality seal for fixed water extinguishing systems and sprinkler systems
- EN 1.0215 non-alloy steel
- Inside and outside zinc-plated system pipes
- Available dimensions from DN 12 to DN 100
- Marked with black inscription
Environmental product declaration
Environmental product declaration (EPD)
Environmental product declarations (EPDs) create transparency and allow products to be compared in terms of their environmental impact.
EPDs are available for Geberit Mapress Carbon Steel pipes and all key fittings:
- Geberit Mapress Carbon Steel system pipes
- Geberit Mapress Carbon Steel fittings
Installation
A quick guide to installation
Geberit offer a comprehensive range of pressing tools, pressing jaws and collars to install Geberit Mapress pipes and fittings.
Note: The installation process for Geberit Mapress d12 to d88.9 is different to that for Geberit Mapress d108.
Geberit Mapress Carbon Steel product range Articles, technical information and more
Do you have any questions? We are happy to help you.
Our specialists advise planners, plumbers and other professionals on their projects. They will be happy to advise you on how to best master your current challenges with our products.
Frequently asked questions about Geberit Mapress Carbon Steel
When is Geberit Mapress Carbon Steel the right solution?
Geberit Mapress Carbon Steel is suitable for closed circuits in heating, cooling and industrial systems. Carbon steel is more cost-effective than other materials, especially for larger supply networks.
You can use Geberit PipeSelect to compare its chemical resistance to various media and find out in just a few clicks whether Geberit Mapress Carbon Steel is suitable for your application.
Are there special installation notes for systems vulnerable to corrosion?
Yes. For systems vulnerable to corrosion, a clean fit, low-oxygen media and suitable material combinations are critical, and both the installation and operation instructions must be followed.
When shouldn’t you use Geberit Mapress Carbon Steel?
Geberit Mapress Carbon Steel is not suitable for drinking water, open circuits or systems with permanent oxygen ingress.
Can carbon steel be combined with other materials?
We do not advise using Geberit Mapress Carbon Steel with other materials.
