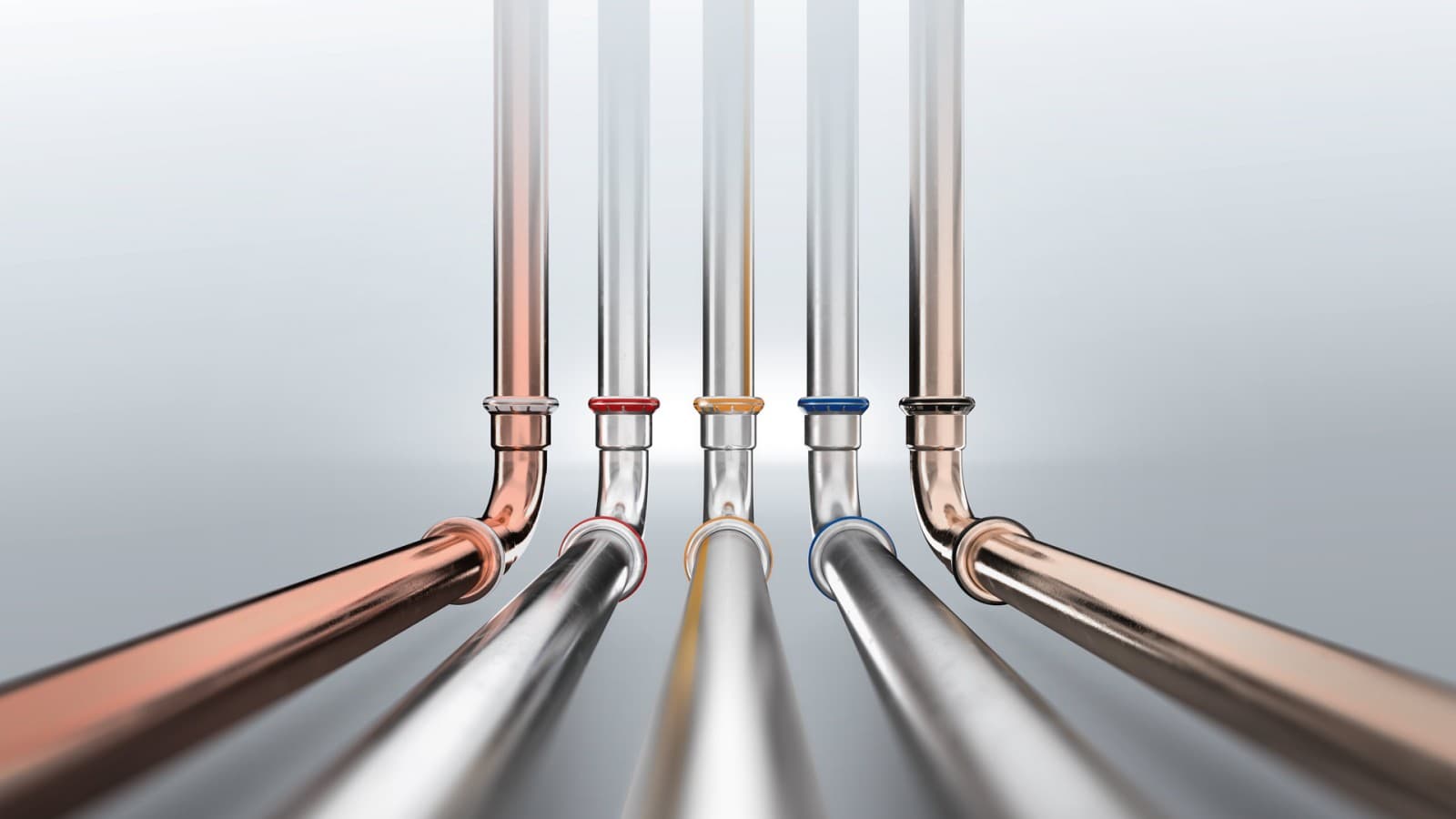

Geberit Mapress Piping systems made of metal for different applications
Geberit Mapress is a tried-and-tested supply system made of metal that is easy and secure to press-fit. The system pipes, seals and fittings can be used in cooling, heating, sprinkler and underfloor heating systems as well as in industrial applications and shipbuilding. Geberit Mapress is available in a range of different materials.
Find the right piping system from Geberit Mapress for your project.
Why choose Geberit Mapress?
Suitable for many applications
The pressing system can be used for lots of gaseous and liquid media.
International approvals
Geberit Mapress has a variety of national and international approvals.
Reliably pressed
The pressing indicator clearly shows whether pipes have been securely connected.
Clear information
The pressing indicator tells you both the steel quality and diameter.
Available assortment

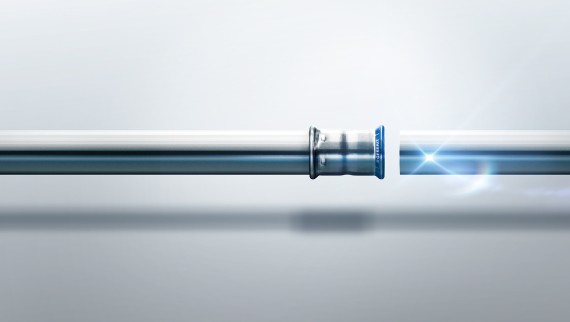

Geberit Mapress Stainless Steel
From drinking water supply to complex industrial plants – our pressing system can be used for lots of different applications.

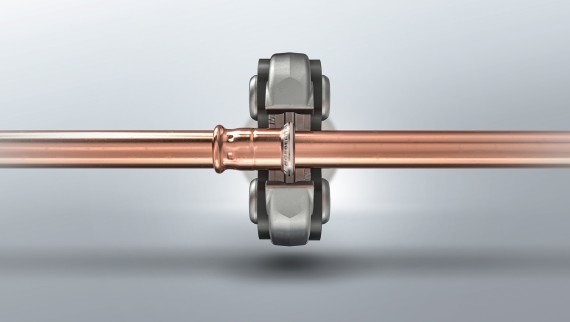

Geberit Mapress Copper
These tried-and-tested fittings made of copper stand out thanks to their excellent resistance to pressure, temperature and corrosion. They are also incredibly versatile thanks to the range of available seal rings.

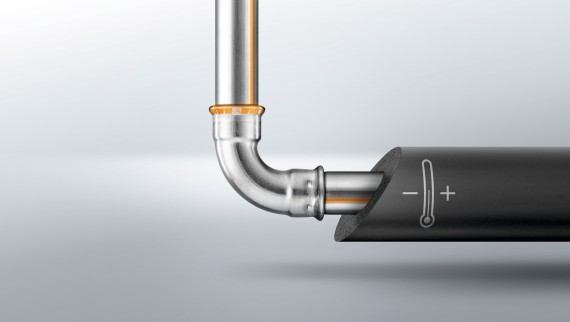

Geberit Mapress Therm
Cost-effective and corrosion-resistant piping system made of stainless steel for closed heating and cooling circuits.

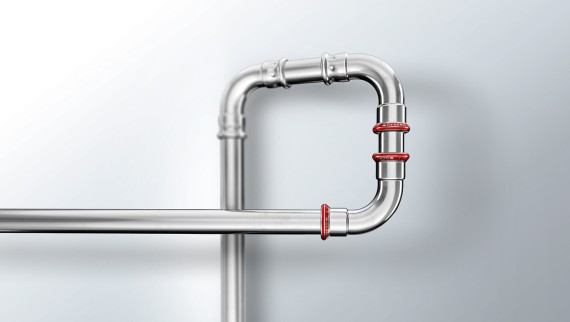

Geberit Mapress Carbon Steel
Geberit Mapress Carbon Steel is a cost-effective solution for closed circuits. The system provides reliable and permanently leakproof connections.

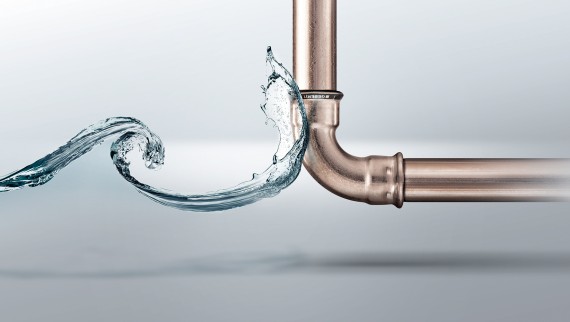

Geberit Mapress CuNiFe
This piping system is ideal for applications that come into contact with seawater thanks to its excellent corrosion resistance.
Benefits of Geberit Mapress

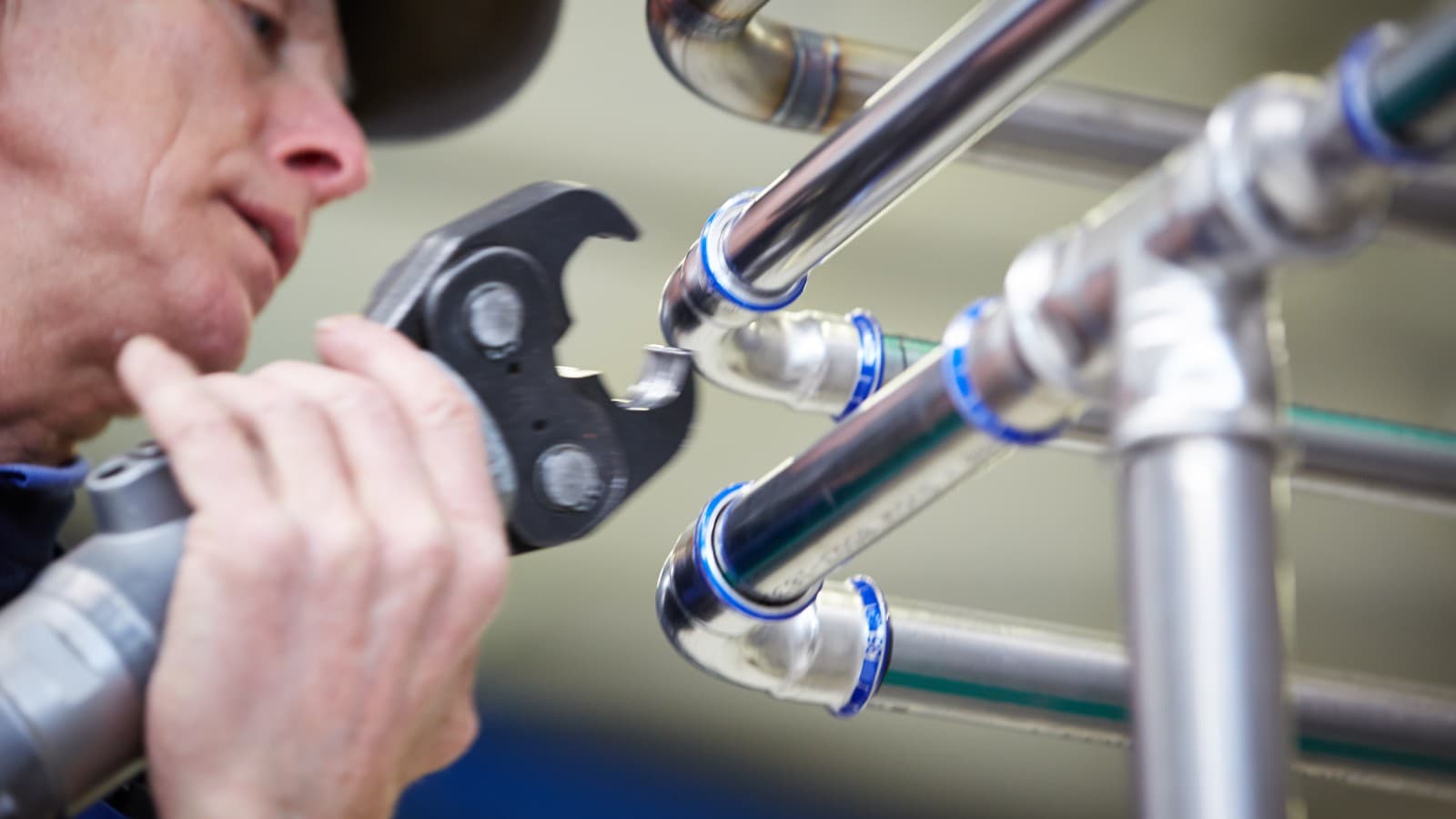

Easy fitting for secure and durable connections
Geberit Mapress connection technology stands out thanks to easy handling and excellent reliability.
After deburring, simply mark the insertion depth on the pipe and insert the pipe up to the mark. Then put the pressing jaw with the correct groove on the defined pressing contour and carry out the pressing procedure using permanent pressing.
This gives the seal ring an exact, predetermined shape that not only saves additional energy but also ensures permanent tightness.
The result is a permanently leakproof connection that is quick to install, cost-effective and perfect for demanding installations.
Prevent incorrect pressings:
The precise jaw guide of Geberit Mapress Stainless Steel fittings ensures that the pressing jaw or pressing collar is positioned exactly where intended. This practically eliminates the risk of slipping or applying it incorrectly.

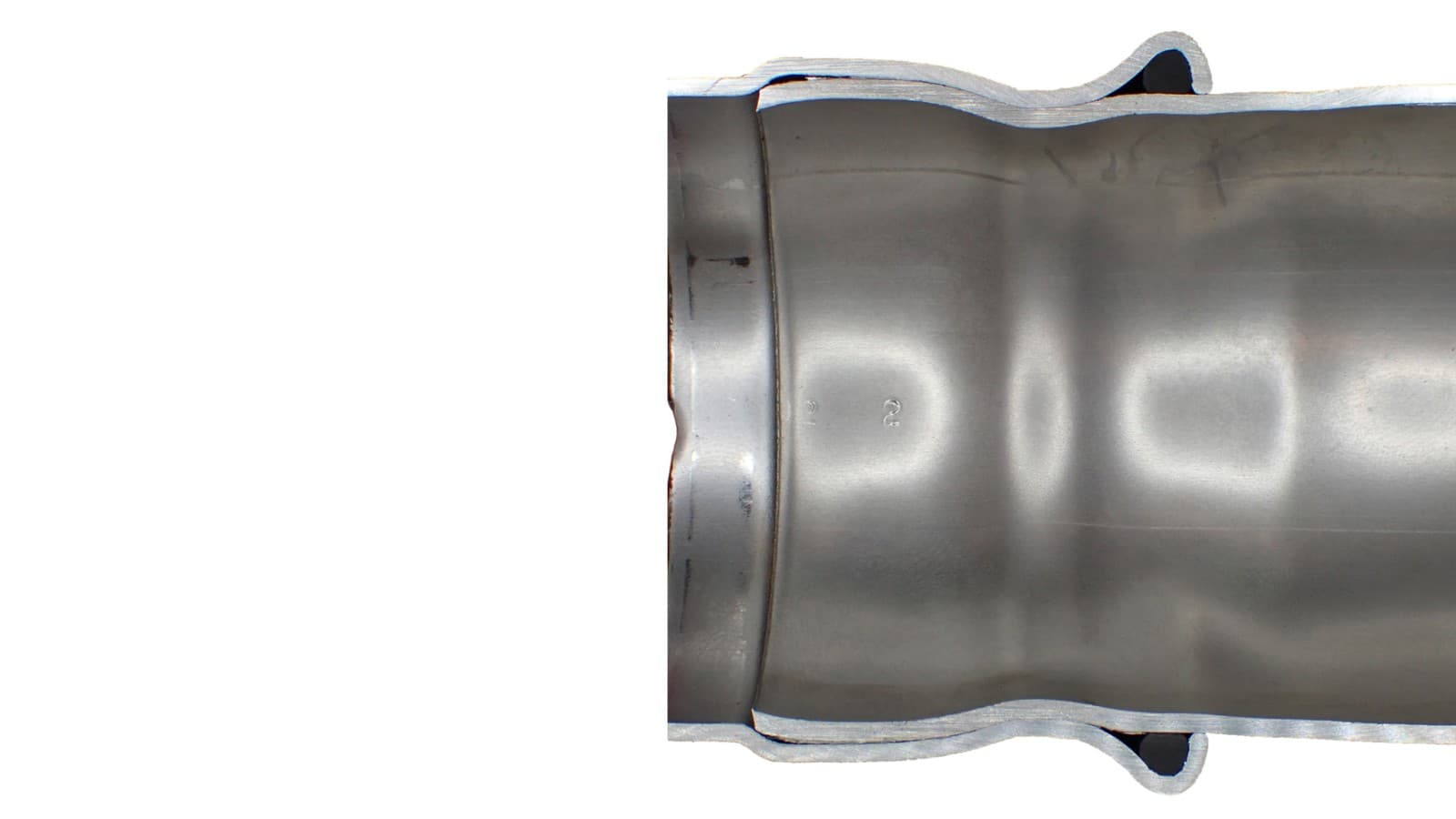

Permanent seal:
During the pressing procedure, the seal ring is given a predefined shape by the pressing jaw of the Geberit Mapress pressing tools. During this process, the ring absorbs additional energy for permanent and reliable tightness.

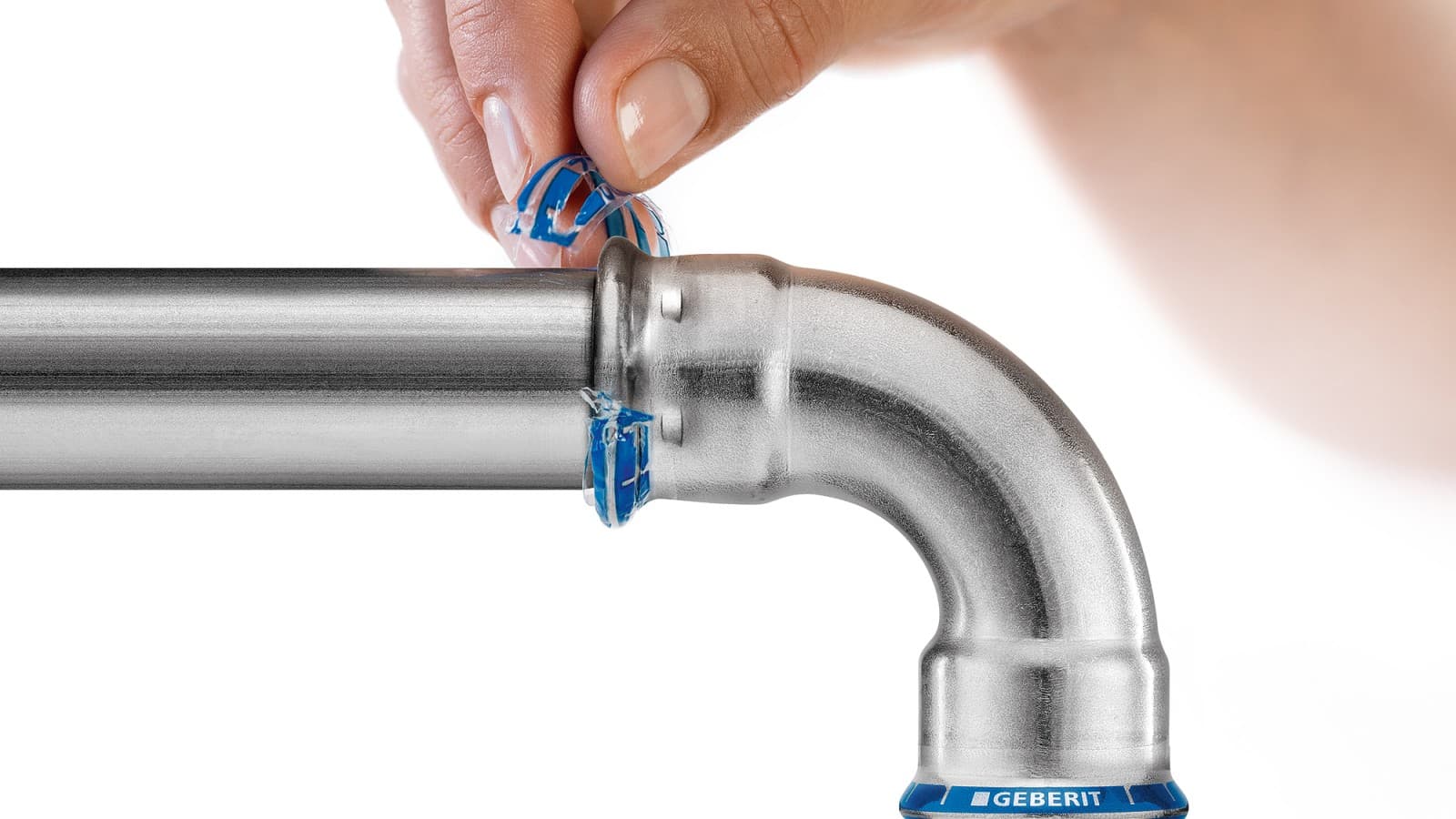

Visual check of pressed connections:
The pressing indicator detaches during pressing and is easy to remove with a small pull. This ensures that unpressed connections are easily visible.

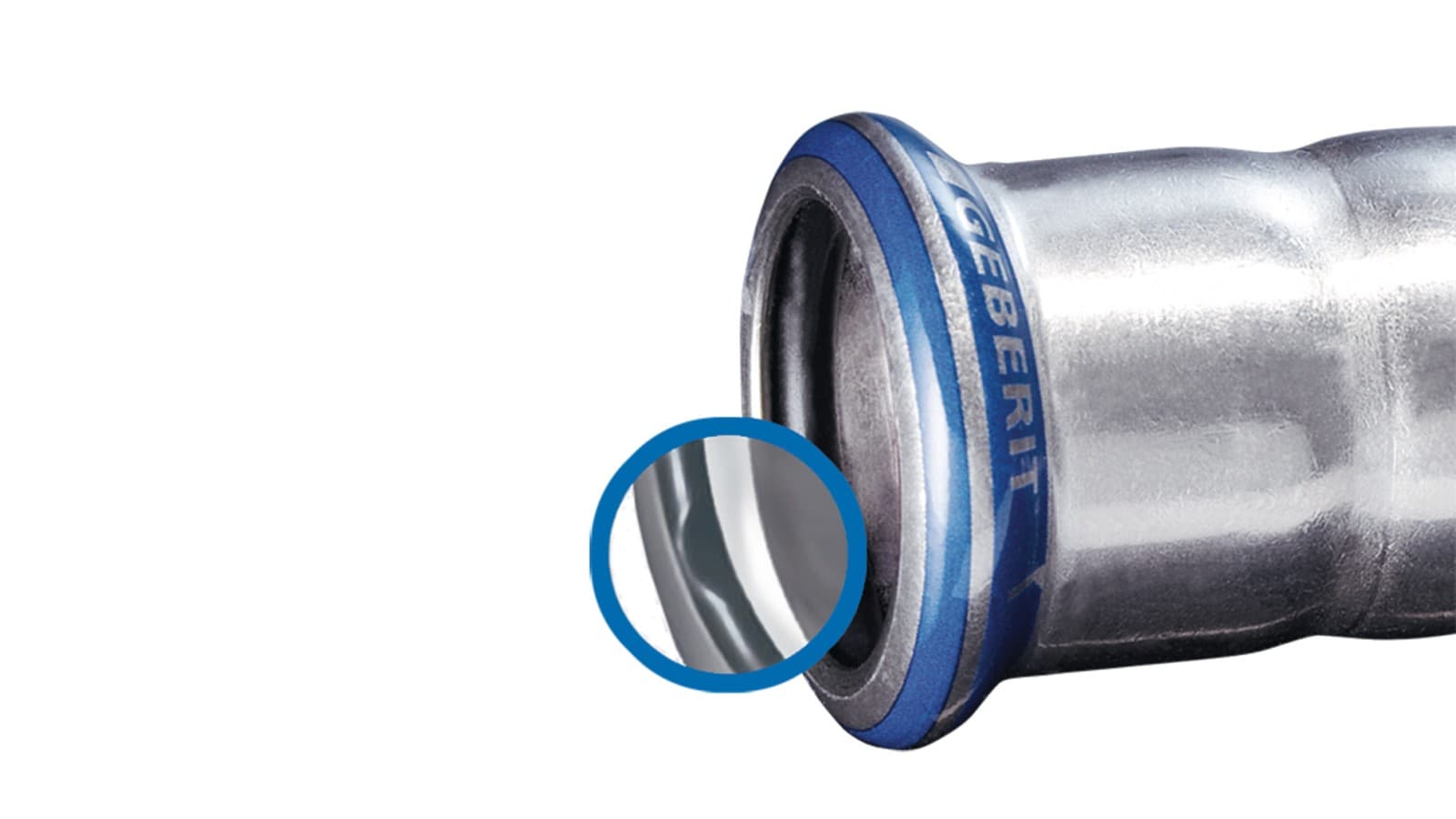

Leaky if unpressed:
the Geberit Mapress seal ring provides additional safety with the pressing indicator. The special contours of the black CIIR or yellow HNBR seal ring mean that any unpressed connections leak during pressure tests. This recognition feature prevents damage from occurring later during operation.

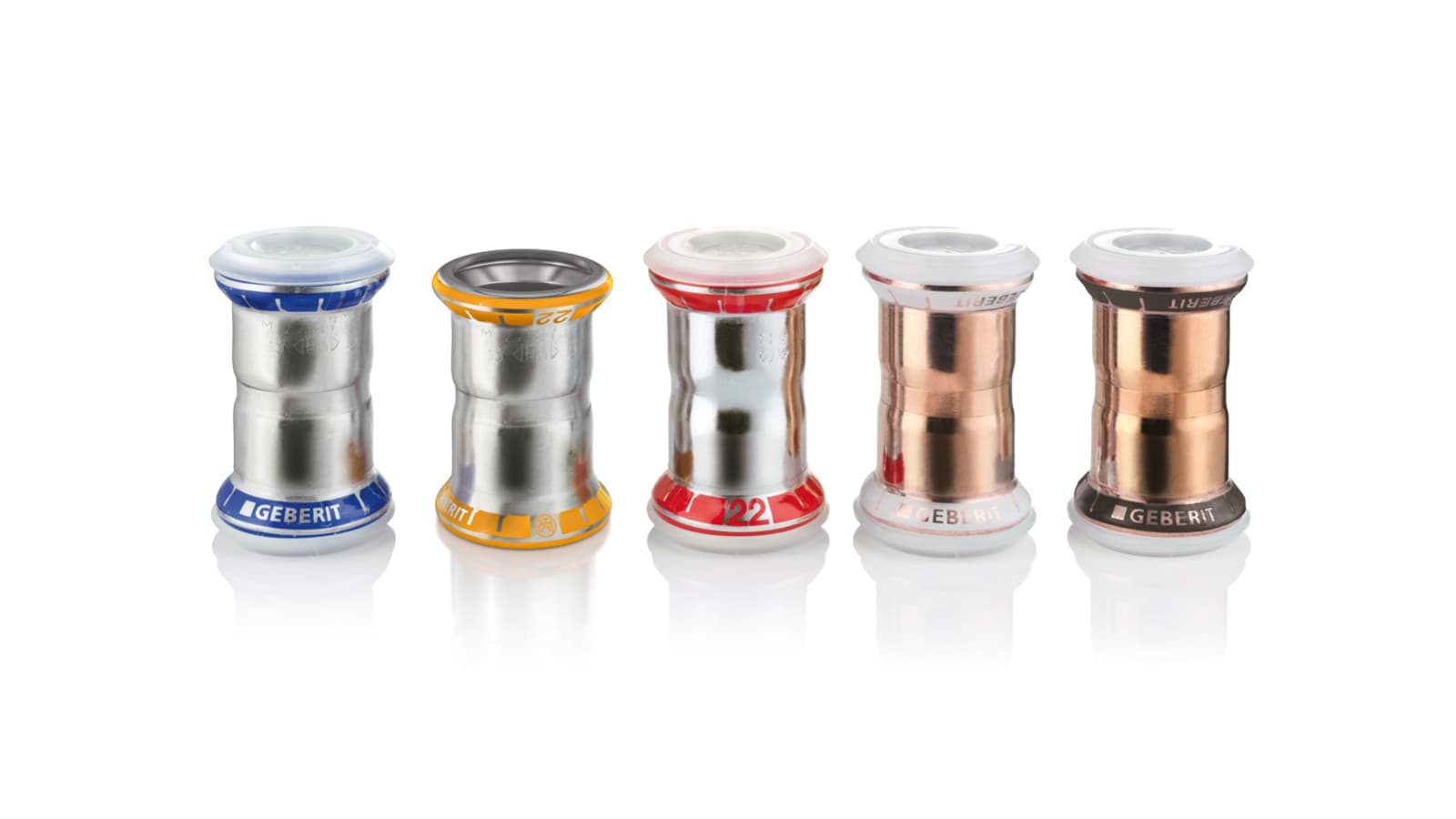

Easy differentiation between systems:
Fittings and pipes are marked with different colours, which allows you to quickly identify different materials.
High production quality for pressfittings and pipelines
We have high standards in terms of both quality and processing during the manufacture of our pressfittings and pipelines. This consistent focus on quality makes Geberit Mapress a reliable piping system that stands out in the market.
Key factors include a high level of material and system reliability, perfectly finished welds and pipes that a have a completely homogenous structure. The optimised surface of the pipe material also helps ensure that our products perform well and maintain their resistance in the long term.
Thermally optimised welds:
Clean weld seams ensure permanent tightness and reduce susceptibility to corrosion. Special heat treatment after welding creates a homogenous structure that allows perfect pressing.

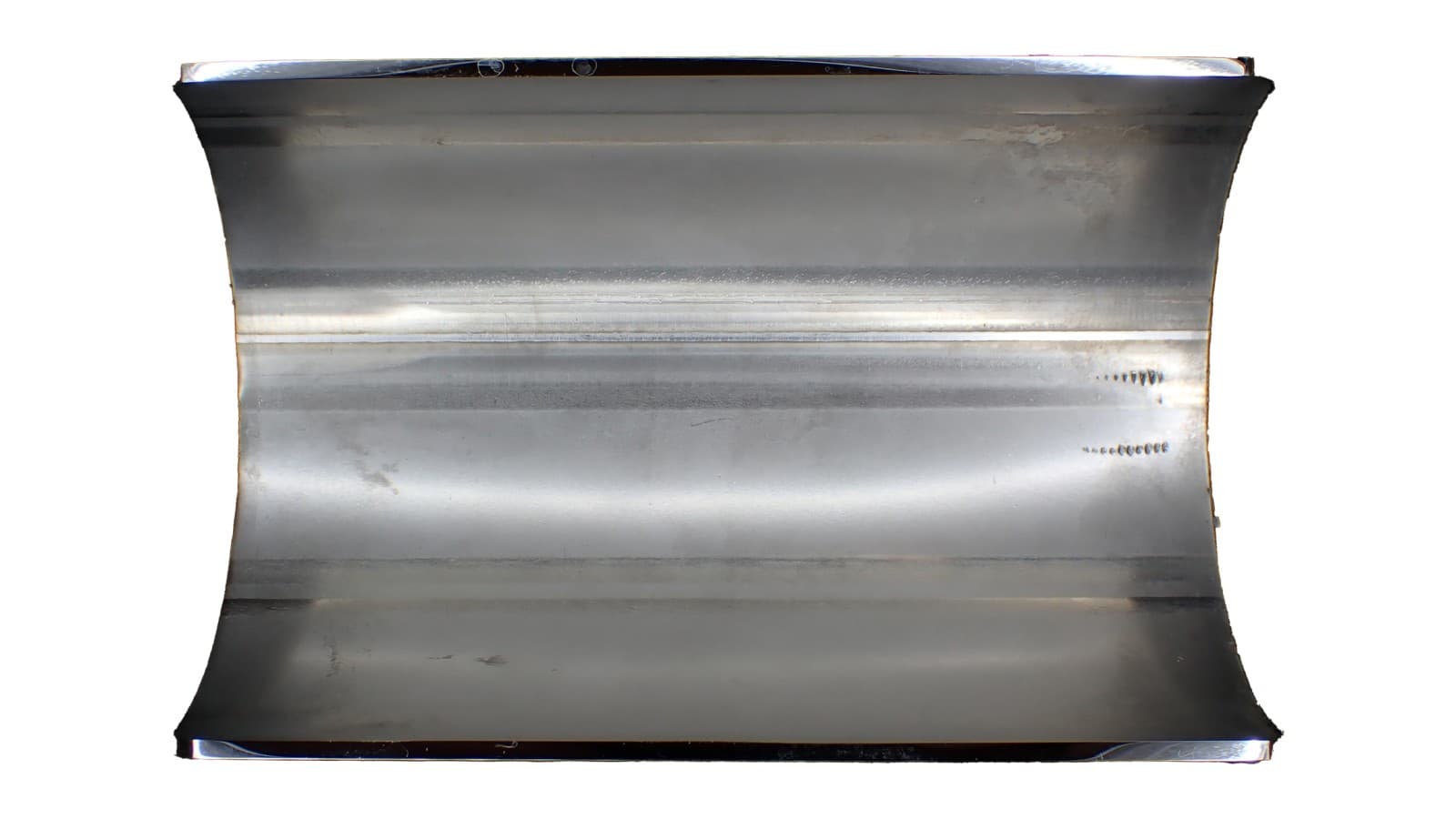

Smooth material surface:
The incredibly smooth surface increases system reliability and long-term tightness. Mechanically smoothed weld seams improve flow behaviour and the fit of the seal ring. Low roughness values, which are well below the limits set out in standards, guarantee the tightness of the system.
Weld seams with a homogenous material structure:
Special thermal treatment ensures the weld seams have a homogenous material structure. The seams are also mechanically smoothed so that pipes and fittings behave consistently during pressing and operation.
A quick guide to installation
Geberit offers a wide range of pressing tools, pressing jaws and collars to install Geberit Mapress pipes and fittings.
Note: The installation process for Geberit Mapress d12 to d88.9 is different to that for Geberit Mapress d108.
Do you have any questions? We are happy to help you.
Our specialists advise planners, plumbers and other professionals on their projects. They will be happy to advise you on how to best master your current challenges with our products.
Reference projects

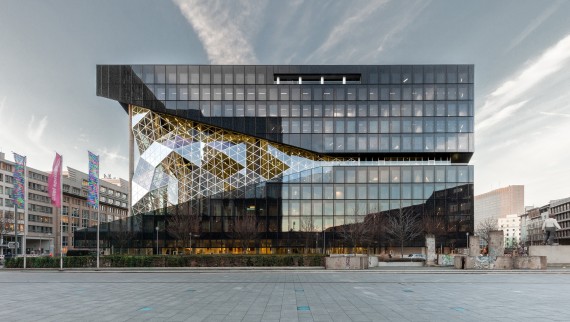

A Media Empire’s New Palace
The German media company Axel Springer has built an exquisite new building in the heart of Berlin with a great deal of Geberit know-how.

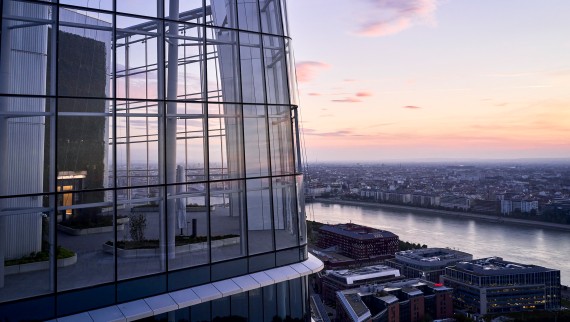

Hungary's green skyscraper
MOL Campus, the tallest office building in Hungary, meets particularly high requirements for sustainable energy management.
Geberit in the Turkish sea breeze
The shipbuilding business is booming in Türkiye. Geberit Mapress CuNiFe piping systems are providing good service here.
Frequently asked questions about Geberit Mapress
What media can I use Geberit Mapress systems for?
Geberit Mapress can be used for a wide range of media.
Are Geberit Mapress systems approved for drinking water?
Geberit Mapress Stainless Steel and Geberit Mapress Copper have South African approvals for drinking water applications.
What sealing materials are used for Geberit Mapress?
The following sealing materials are available:
- CIIR, black: Drinking water, heating, cooling – wide temperature range
- FKM, blue: Higher temperatures, oils, some chemicals
- HNBR, yellow: Gas, oils, cooling – depending on approval
Some of the fittings in the range come with different preinstalled seals. Seals are easy to replace prior to installation.
Is pressing with Geberit Mapress quicker than welding?
Yes. Pressing is a lot quicker than welding because no welding work, cooling time or follow-up work is required. This considerably reduces installation time and downtime.
What is the service life of a pressed system?
Our piping systems are designed for a service life of 50 years, provided that they’re used with suitable media and in accordance with the specified operating conditions.
Service life can also be influenced by environment and installation.
What pressing contours do Mapress fittings have?
Geberit Mapress fittings have an M-contour (Mapress contour) and are not compatible with V-contour tools.
Can the same fitting and pressing tools be used for all Geberit Mapress systems?
Yes. The processing and pressing tools page explains everything you need to know about compatibility.
Are there adapters between Geberit Mapress and other piping systems from Geberit?
Yes, there are various system adapters for Geberit Mepla and Geberit FlowFit.
What certificates are required for sprinkler systems (VdS/UL/FM)?
- VDS is the relevant standard in Germany and is used across Europe.
- FM is an American insurance regulation for sprinkler systems and is used around the world.
- UL (Underwriters Laboratories) tests pipes, fittings and fastening elements specifically for sprinkler applications. UL-listed products are internationally recognised.
Geberit Mapress Stainless Steel, Therm and Carbon Steel can be used for sprinkler and extinguishing water pipe systems.
